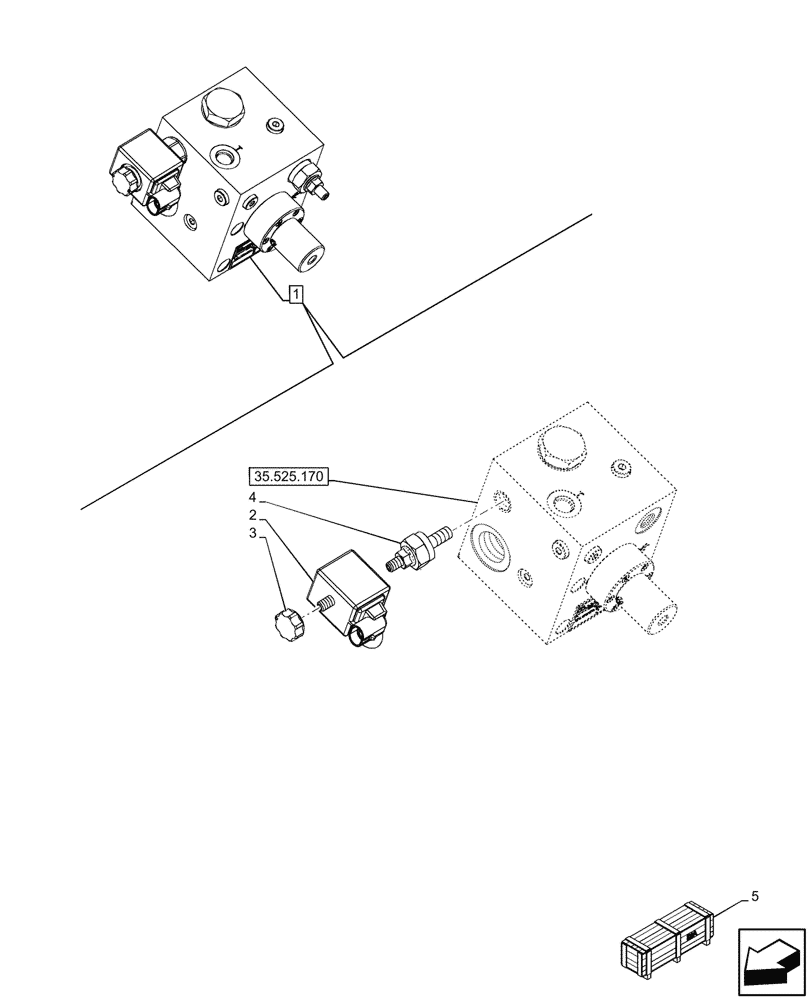

Запчасти Case 580SN (55.036.060) - VAR - 747662 - AUXILIARY CONTROL VALVE, SOLENOID (55) - ELECTRICAL SYSTEMS

1

84247110

VALVE

ASSY, Closed Center, UNI-AUX, Incl 2 - 4

1шт.

See also Valve Components in Figure 35.525.170

1шт.

2

84478803

COIL

Solenoid with Connector Diode

1шт.

3

9970384

RING NUT

1шт.

4

47491458

SOLENOID VALVE

1шт.

5

47357827

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 1 - 4

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47358915

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 1 - 4

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47359725

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 1 - 4

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47359953

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 1 - 4

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
