Запчасти Case 580SN (55.031.070) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, PRESSURE SWITCH, 4WD (55) - ELECTRICAL SYSTEMS

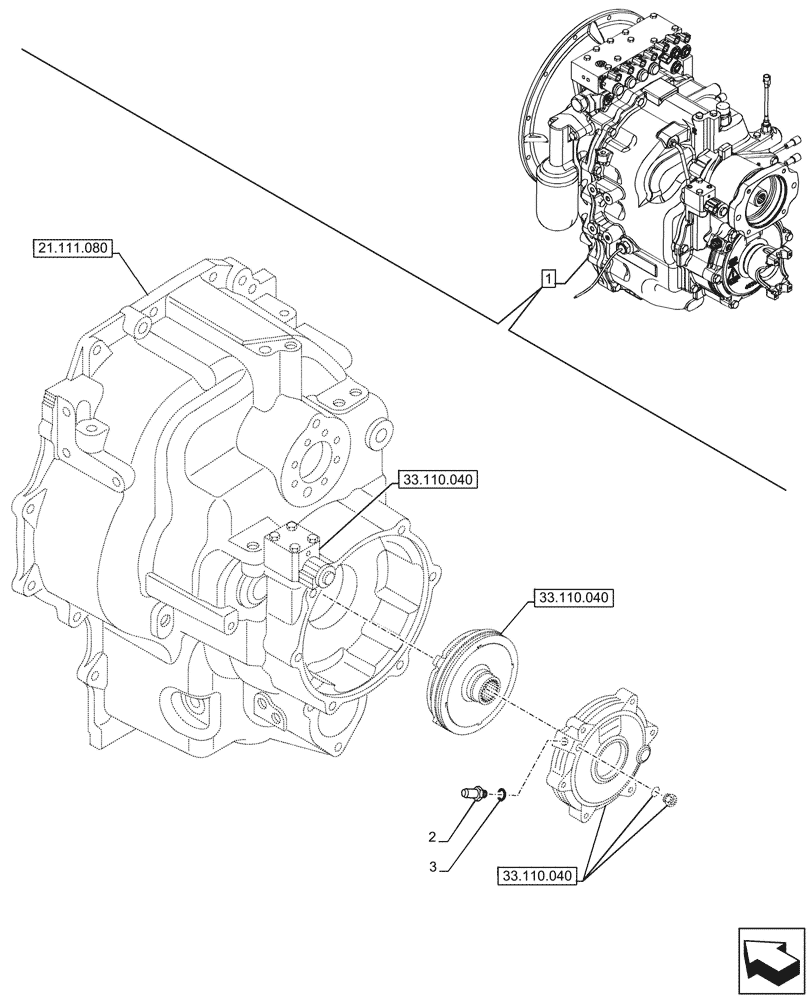

Схема запчастей Case 580SN - (55.031.070) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, PRESSURE SWITCH, 4WD (55) - ELECTRICAL SYSTEMS
33.110.040
1
2
3
21.111.080
33.110.040
33.110.040

Артикул

Название

Примечание

Количество

1

84327512

TRANSMISSION

ASSY, Semi-powershift, 4WD, Incl 2, 3

1шт.

See also Transmission Components in Figures 21.103.030, 21.103.040, 21.111.070, 21.111.080, 21.152.060, 21.152.070, 21.152.080, 21.152.090, 21.152.100, 21.152.110, 33.110.040, 55.020.020, 55.021.020, 55.022.050, 55.023.020, 55.024.060, 55.024.100, 55.031.080

1шт.

2

87701313

SENSOR

Transmission Oil Pressure Sensor

1шт.

3

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

1шт.

Выбрано товаров: 4
