Запчасти Case 580SN (50.200.070) - VAR - 747853, 747855 - AIR CONDITIONING, COMPRESSOR (50) - CAB CLIMATE CONTROL

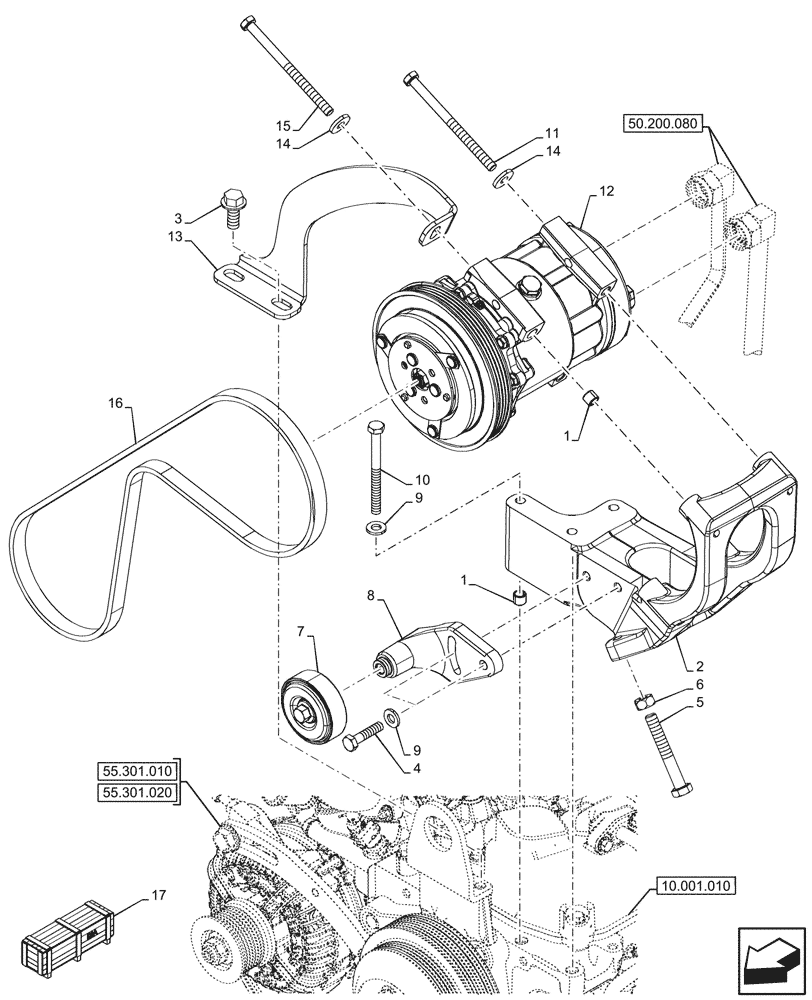

Схема запчастей Case 580SN - (50.200.070) - VAR - 747853, 747855 - AIR CONDITIONING, COMPRESSOR (50) - CAB CLIMATE CONTROL
55.301.010
16
11
8
10
3
7
9
14
1
5
1
14
13
17
9
2
15
12
6
4
50.200.080
10.001.010
55.301.020

Артикул

Название

Примечание

Количество

1

87429952

SLEEVE,8.5mm ID x 11.132mm OD x 9mm L

Spacer, Stud Dowel Ring

4шт.

2

84548639

BRACKET

Grey, A/C Mounting

1шт.

3

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

4

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

5

614-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

87548073

IDLER

1шт.

8

87551299

SUPPORT

Grey, Idler Support

1шт.

9

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.

10

86516395

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

3шт.

11

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

12

47693200

AIRCOND. COMPRESSOR,12V, 45W_W/ Pulley 156mm D

1шт.

13

84546916

BRACKET

A/C Brace

1шт.

14

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

4шт.

15

86516527

BOLT,Hex, M8 x 110mm, Cl 10.9

2шт.

16

84591722

V-BELT,14.25mm W x 1165mm L, 4 Ribs

A/C Compressor

1шт.

17

47699070

CONSTRUCTION DIA

Air Conditioning HPCR, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
