(50.200.030) - VAR - 747853, 747855 - AIR CONDITIONING, LINES

Запчасти Case 580SN (50.200.030) - VAR - 747853, 747855 - AIR CONDITIONING, LINES (50) - CAB CLIMATE CONTROL

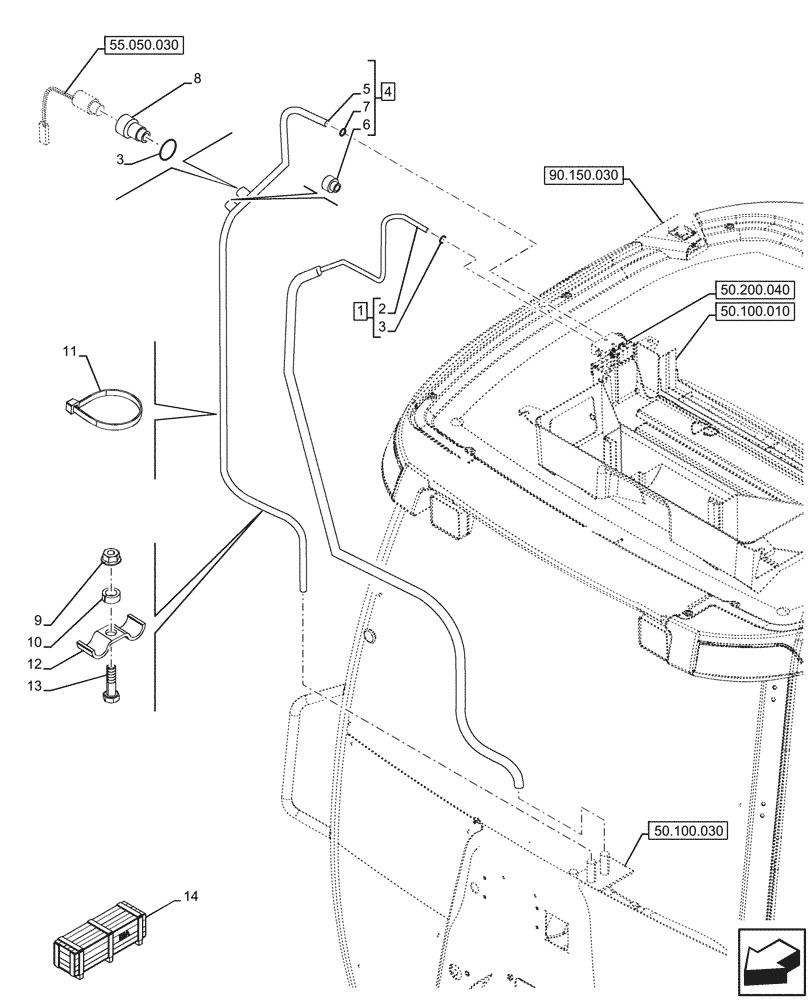

Схема запчастей Case 580SN - (50.200.030) - VAR - 747853, 747855 - AIR CONDITIONING, LINES (50) - CAB CLIMATE CONTROL
50.200.040
14
9
11
13
2
8
4
1
5
3
10
3
12
6
7
50.100.030
50.100.010
55.050.030
90.150.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

360256A1

A/C HOSE,0.375 Inch OD x 0.035 Inch Wall, Thermoplastic Core

ASSY, Press, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

4

360257A1

A/C HOSE,0.625 Inch OD x 0.049 Inch Wall, Thermoplastic Core

ASSY, Suction, Incl 3 (Qty 1), 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

6

122553A1

CAP

1шт.

7

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

8

122081A1

FITTING,M10 x 1.25 x 26.43mm L

1шт.

9

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

10

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

12

D143427

CLAMP

1шт.

13

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

14

47699070

CONSTRUCTION DIA

Air Conditioning HPCR, Incl 1, 4, 9, 10, 12, 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
