(44.511.030) - VAR - 8201110, 9200019, 9200023 - FRONT, WHEEL (9.75X16.5), 4WD

Запчасти Case 580SN (44.511.030) - VAR - 8201110, 9200019, 9200023 - FRONT, WHEEL (9.75X16.5), 4WD (44) - WHEELS

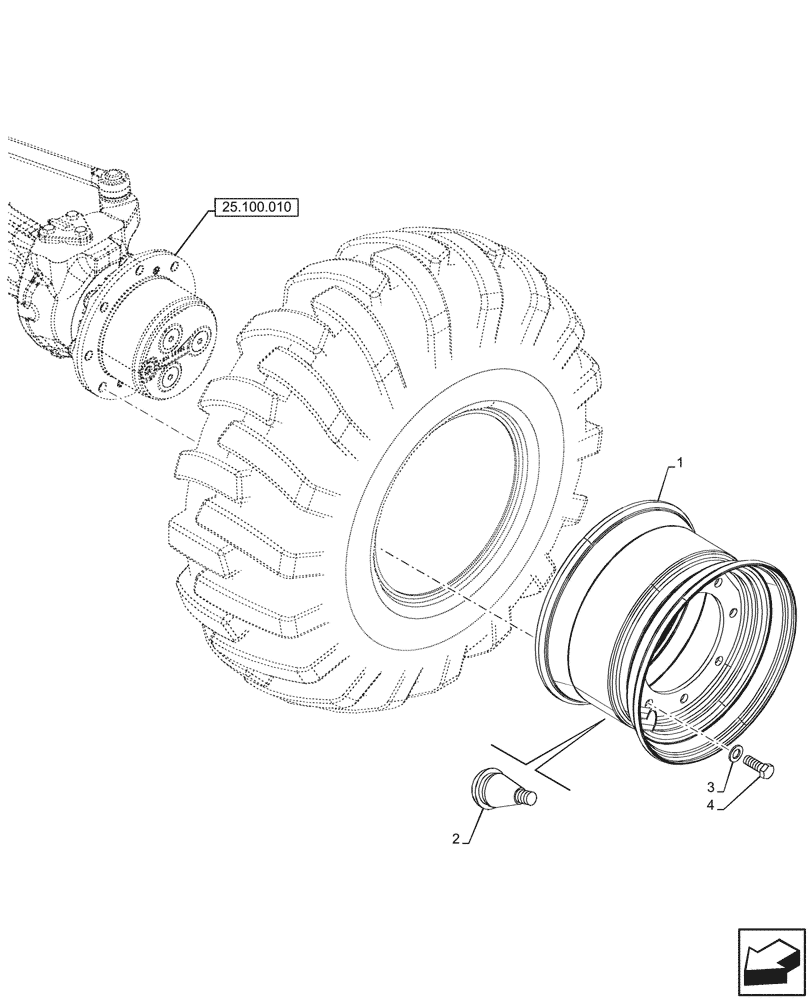

Схема запчастей Case 580SN - (44.511.030) - VAR - 8201110, 9200019, 9200023 - FRONT, WHEEL (9.75X16.5), 4WD (44) - WHEELS
25.100.010
2
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47959418

RIM,419.1mm Dia x 247.7mm W, 8 Bolts, CE Grey

Grey

1шт.

2

707684

VALVE STEM

1шт.

3

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

8шт.

4

16047031

BOLT,M18 X 50 FULL 10.9 ZND

8шт.
