(41.216.090) - STEERING CYLINDER HYD. LINE

Запчасти Case 580SN (41.216.090) - STEERING CYLINDER HYD. LINE (41) - STEERING

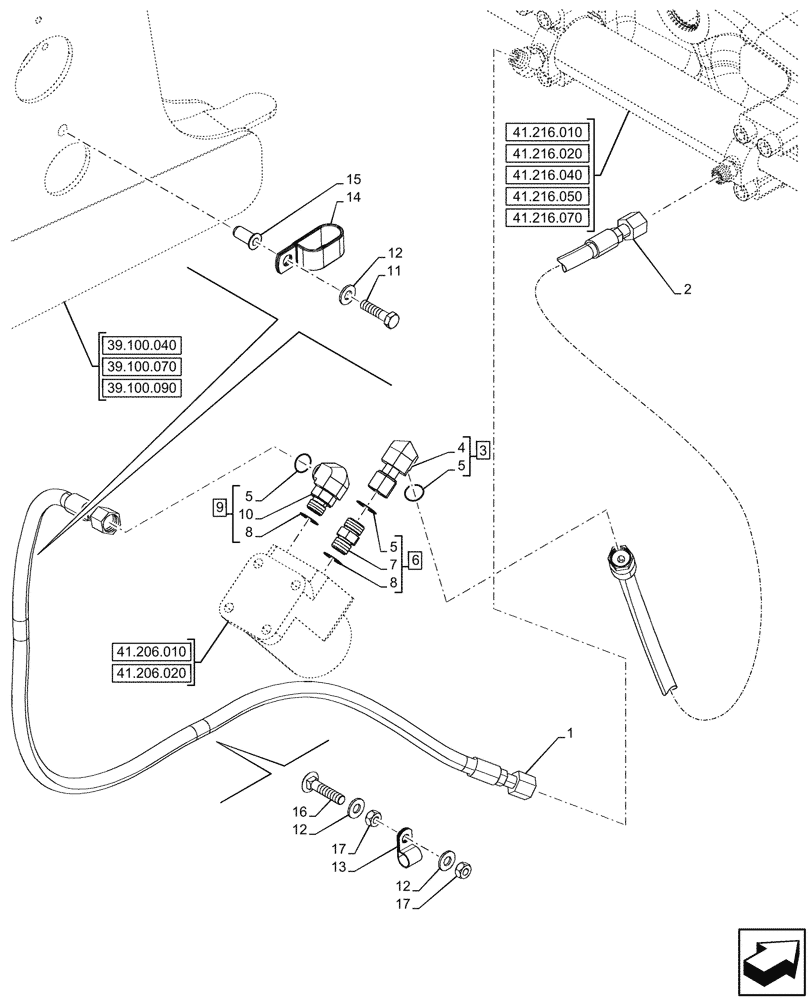

Схема запчастей Case 580SN - (41.216.090) - STEERING CYLINDER HYD. LINE (41) - STEERING
39.100.040
4
8
10
12
1
17
11
14
5
13
15
7
3
16
17
5
12
6
5
12
8
2
9
41.206.020
41.216.010
41.206.010
41.216.020
41.216.070
41.216.050
39.100.070
39.100.090
41.216.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84554256

HYDRAULIC HOSE,10mm ID x 1405mm L

LH Steering

1шт.

2

47566181

HYDRAULIC HOSE,9.5mm ID x 1800mm L

RH Steering

1шт.

3

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

ASSY, Incl 4, 5 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 3

1шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

6

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

ASSY, Incl 5 (Qty 1), 7, 8 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

9

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

ASSY, Incl 5 (Qty 1), 8 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

1шт.

11

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

12

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

13

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

14

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

15

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

1шт.

16

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
