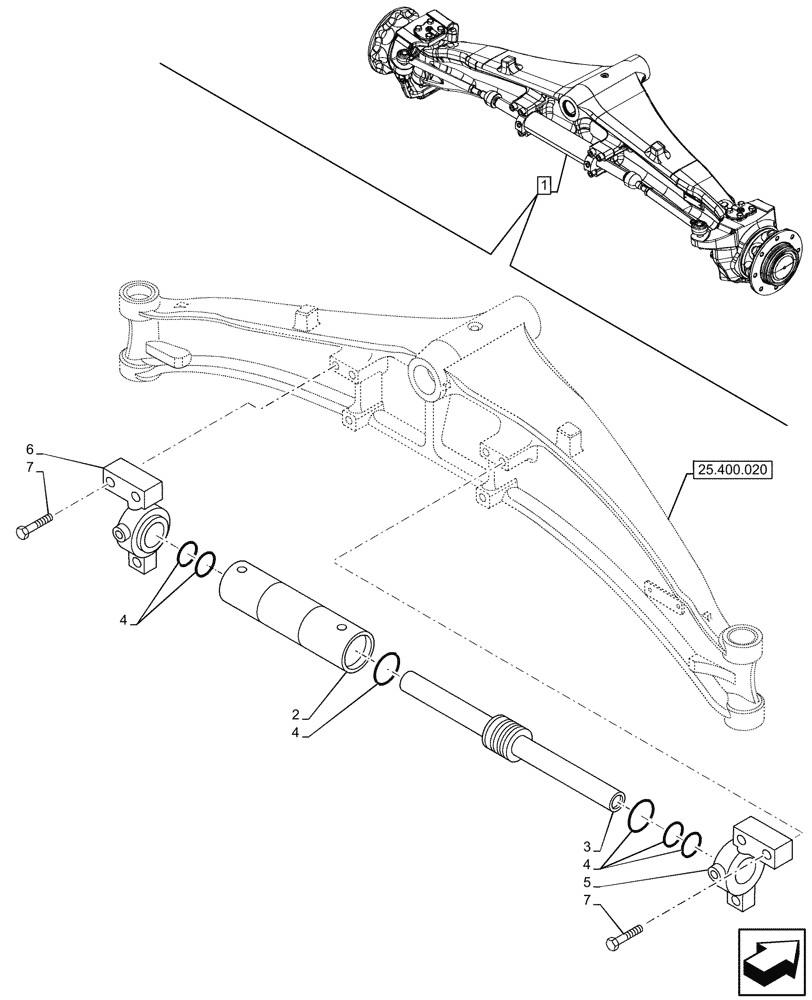

Запчасти Case 580SN (41.216.010) - FRONT AXLE, STEERING TIE-ROD, 2WD (41) - STEERING

1

86990836

FRONT AXLE

ASSY, LV80, Incl 2 - 7

1шт.

See also Front Axle Components in Figures 25.400.020, 25.400.030, 25.400.040, 41.106.010

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

1шт.

3

401062A1

PISTON ROD

Steering Cylinder, 2WD

1шт.

4

401061A1

SEAL KIT

Steering Cylinder, 2WD

1шт.

5

401063A1

HEAD ASSY.

RH

1шт.

6

401064A1

HEAD ASSY.

LH

1шт.

7

863-16070

HEX SOC SCREW,M16 x 70mm, Cl 12.9

6шт.
