(41.206.040) - VAR - 423011 - POWER STEERING PUMP, LINE

Запчасти Case 580SN (41.206.040) - VAR - 423011 - POWER STEERING PUMP, LINE (41) - STEERING

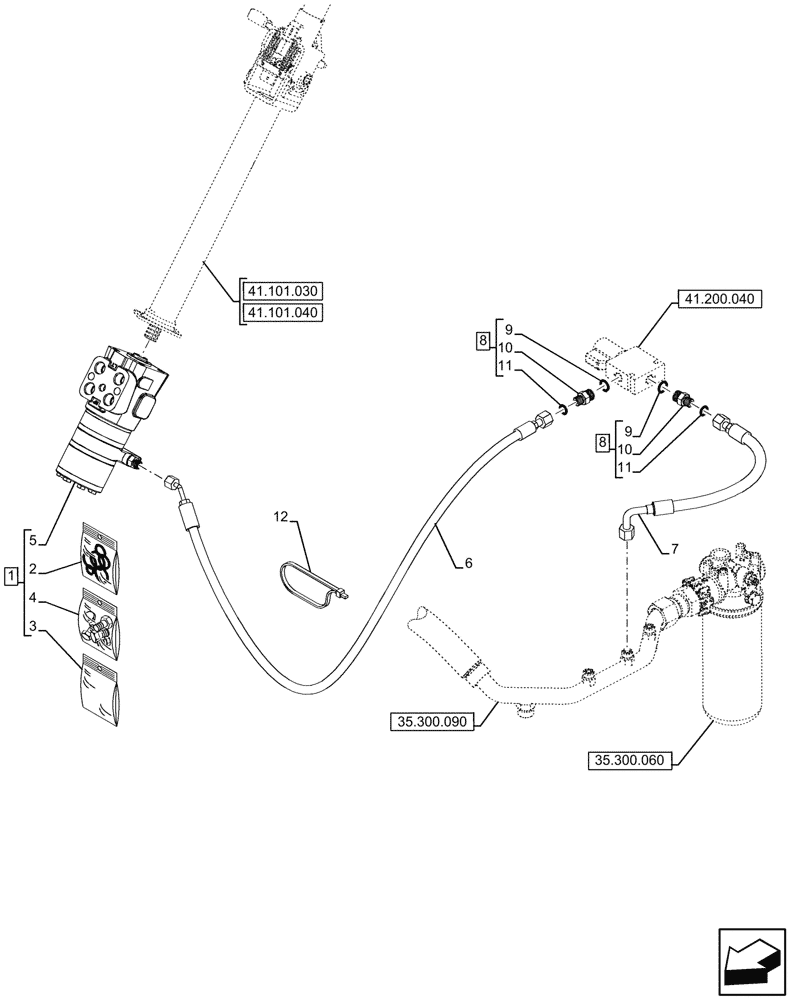

Схема запчастей Case 580SN - (41.206.040) - VAR - 423011 - POWER STEERING PUMP, LINE (41) - STEERING
41.101.030
12
11
6
8
10
10
1
2
3
4
9
5
11
8
9
7
35.300.060
35.300.090
41.101.040
41.200.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87579286

STEERING VALVE

ASSY, Steering Column, Incl 2 - 5

1шт.

2

87454545

SEAL KIT

Power Steering Valve

1шт.

3

396592A1

KIT

Anti-Cavitation Valve

1шт.

4

87619415

SET OF SCREWS

KIT Bolt

1шт.

5

NSS

NOT SOLD SEPARAT

Pump, Incl in 1

1шт.

6

84251296

HOSE ASSY.,6.3mm ID x 1250mm L

From Comfort Steer Solenoid to Pump Steering

1шт.

7

84514720

HOSE ASSY.,10mm ID x 422mm L

From Comfort Steer Solenoid to Pump Oil Line

1шт.

8

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 9 - 11

2шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

2шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.
