(39.140.040) - COUNTERWEIGHT, 700 LBS, FRONT

Запчасти Case 580SN (39.140.040) - COUNTERWEIGHT, 700 LBS, FRONT (39) - FRAMES AND BALLASTING

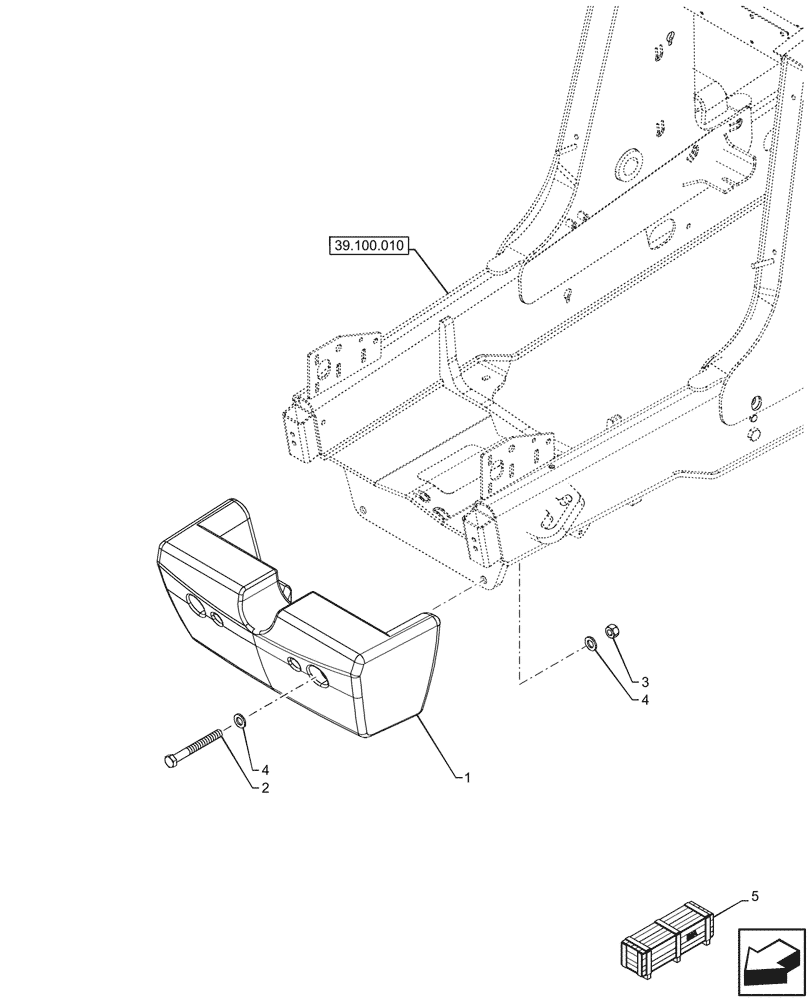

Схема запчастей Case 580SN - (39.140.040) - COUNTERWEIGHT, 700 LBS, FRONT (39) - FRAMES AND BALLASTING
39.100.010
4
4
2
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47959453

COUNTERWEIGHT,318 Kg / 700 Lb

1шт.

2

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

2шт.

3

829-1420

NUT,M20, Cl 10

2шт.

4

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

4шт.

5

47959503

CONSTRUCTION DIA

Standard Counterweight, Incl 1 - 4

1шт.

Valid for 580N (Livery), 580SN (Livery), 590SN (Livery) Models only

1шт.
