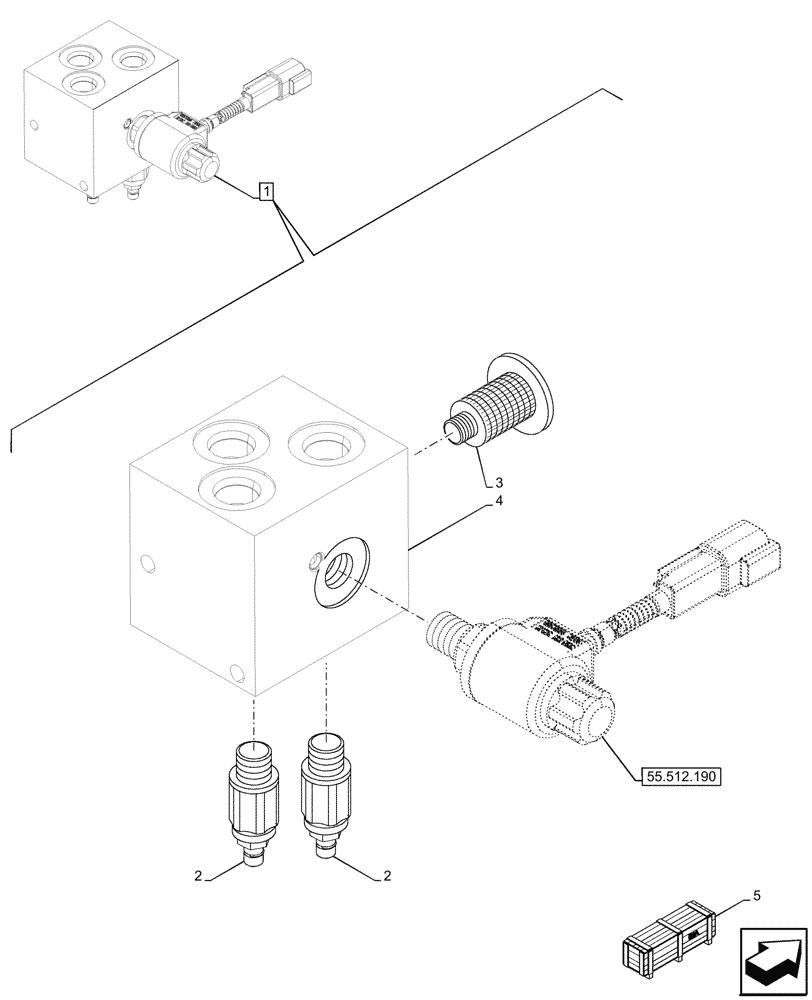

Запчасти Case 580SN (35.738.020) - VAR - 423080 - HYDRAULIC LIFT, W/ MECHANICAL LIFT, VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84527714

CONTROL VALVE

ASSY, Heavy Lift Mechanical Control, Incl 2 - 4

1шт.

See also Control Valve Components in Figure 55.512.190

1шт.

2

84338932

VALVE

Heavy Lift Relief

2шт.

3

84338934

FILTER STRAINER

W/ Orifice

1шт.

4

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 1

1шт.

5

84561133

CONSTRUCTION DIA

Power Lift, Incl 1 - 3

1шт.

Valid for 580SN (Livery) Model only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
