(35.732.050) - VAR - 423080 - STABILIZER, MECHANICAL, CONTROLS, CHECK VALVE, LINES

Запчасти Case 580SN (35.732.050) - VAR - 423080 - STABILIZER, MECHANICAL, CONTROLS, CHECK VALVE, LINES (35) - HYDRAULIC SYSTEMS

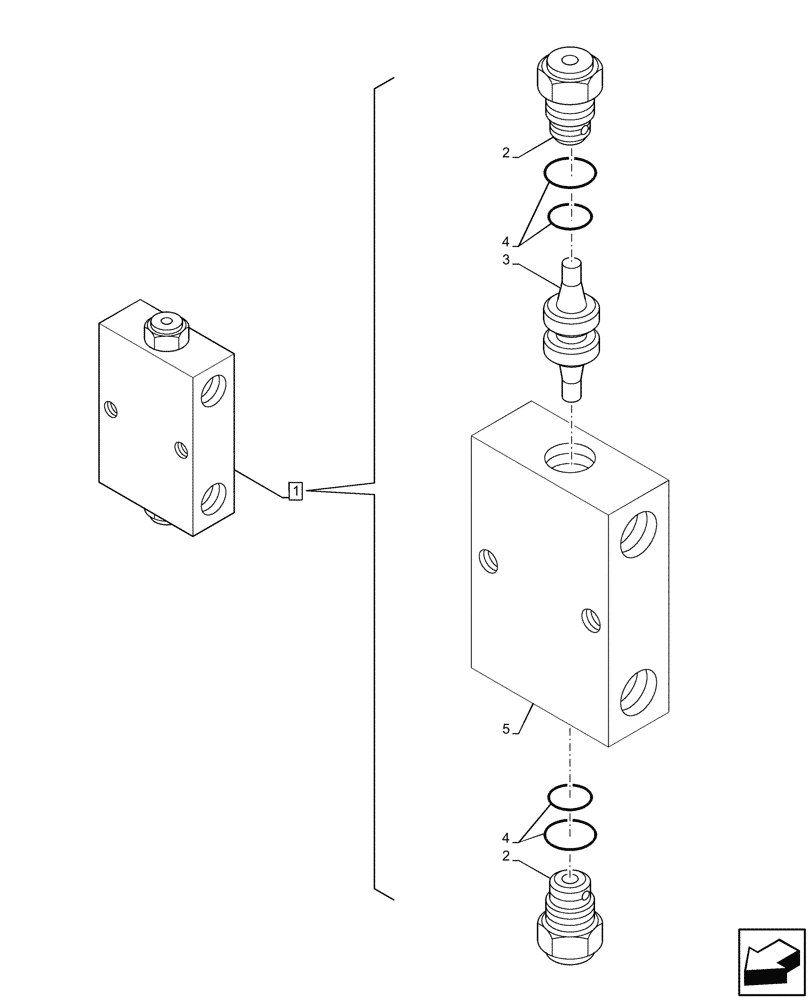

Схема запчастей Case 580SN - (35.732.050) - VAR - 423080 - STABILIZER, MECHANICAL, CONTROLS, CHECK VALVE, LINES (35) - HYDRAULIC SYSTEMS
5
2
4
4
3
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

85802820

CHECK VALVE

ASSY, Stabilizer, Load, Incl 2 - 5

1шт.

2

85820160

HYDRAULIC VALVE

2шт.

3

85820159

PLUNGER

1шт.

4

85821126

SEAL

Double-Acting Valve

1шт.

5

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 1

1шт.
