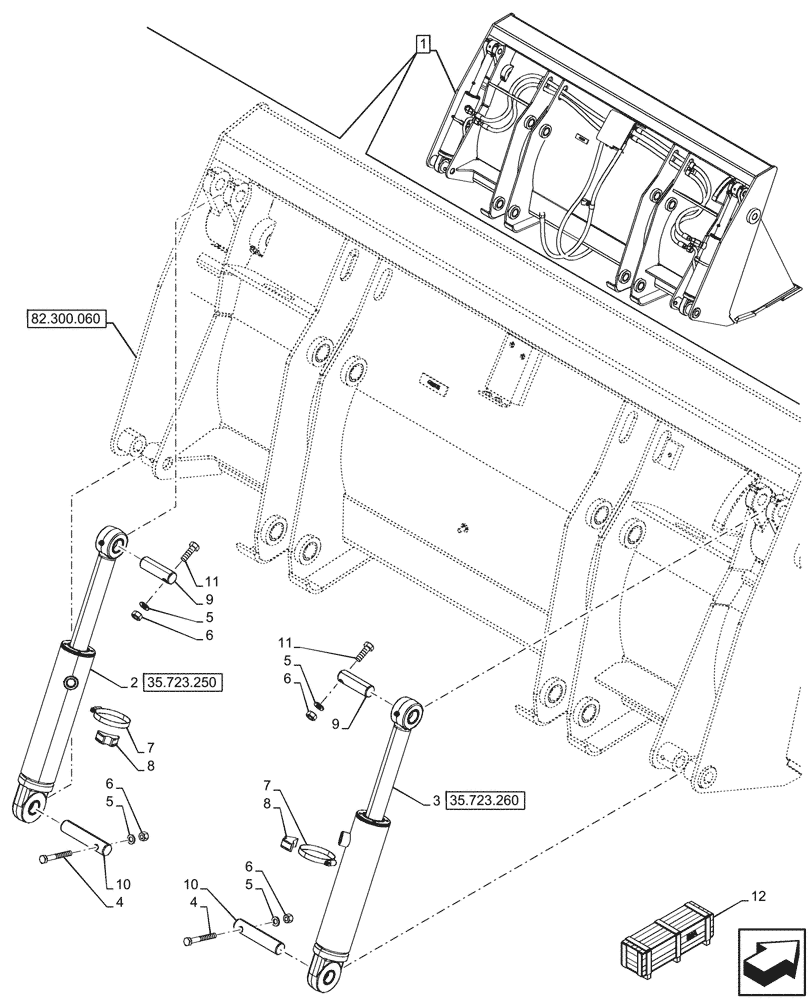

Запчасти Case 580SN (35.723.240) - VAR - 747863 - LOADER BUCKET, CYLINDER (35) - HYDRAULIC SYSTEMS

1

47802379

4 IN 1 BUCKET,82" L

ASSY, 82in/2082mm 4-IN-1, Incl 2 - 11

1шт.

See also 4 In 1 Bucket Components in Figures 35.723.230, 82.300.070, 90.108.024

1шт.

2

87455458

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

ASSY, Clam LH

1шт.

3

87455459

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

ASSY, Clam RH

1шт.

4

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

7

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

8

47591143

CLAMP,3/4" Clamping tube

2шт.

9

D51392

PIN,31.72mm OD x 101.6mm L

2шт.

10

47803043

PIN,31.712mm OD x 162.4mm L

2шт.

11

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

12

48054424

CONSTRUCTION DIA

Bucket 82Inch 4 in 1, Incl 1 - 11

1шт.

Valid for 580N EP (Livery), 580N (Livery), 580SN (Livery) Models only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
