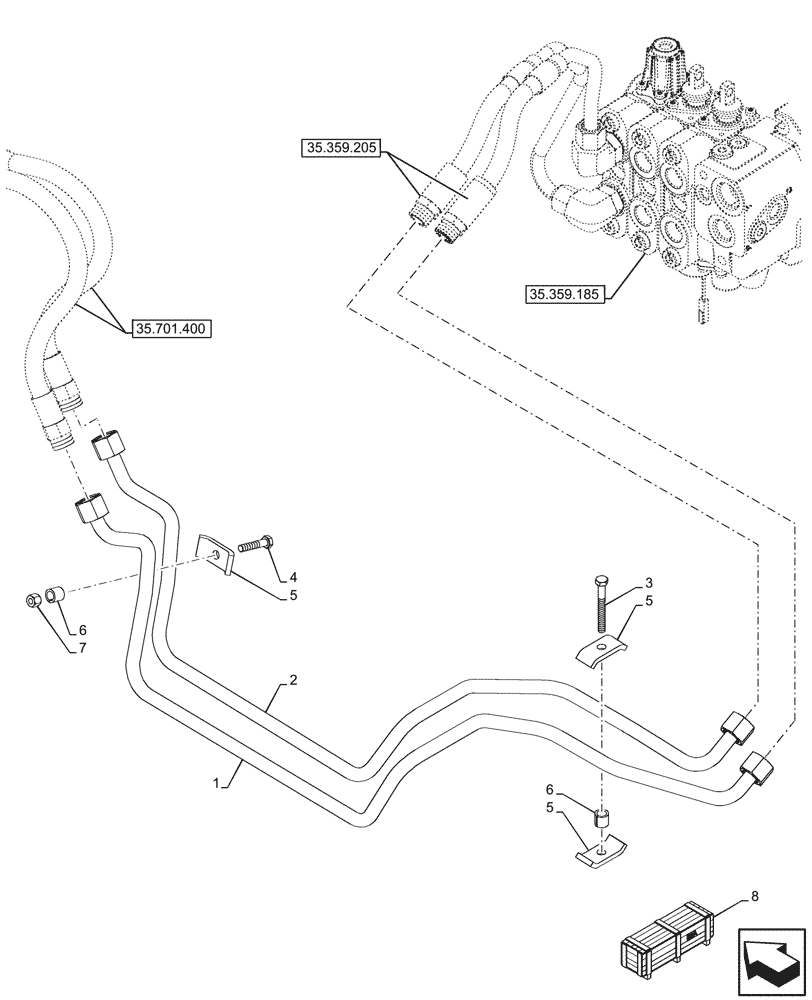

Запчасти Case 580SN (35.701.330) - LOADER BUCKET, AUXILIARY HYDRAULIC, W/ PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

1

84293011

TUBE

From Valve to Cylinder Line, 4N1 Port A

1шт.

2

84293009

TUBE

From Valve to Cylinder Line, 4N1 Port B

1шт.

3

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

4

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

5

D138055

CLAMP

3шт.

6

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

7

16104121

NUT,M8 x 1.25, Cl 10

1шт.

8

47788201

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 7

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
