(35.359.350) - LOADER, BACKHOE CONTROL VALVE, LINE, BRACKET

Запчасти Case 580SN (35.359.350) - LOADER, BACKHOE CONTROL VALVE, LINE, BRACKET (35) - HYDRAULIC SYSTEMS

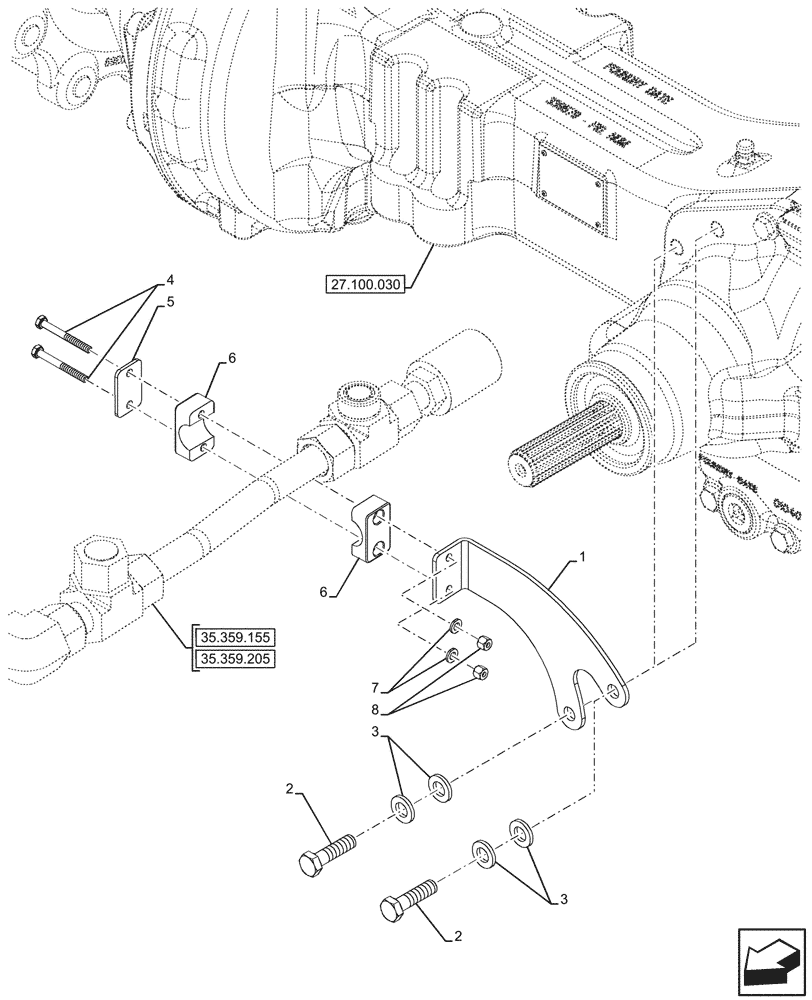

Схема запчастей Case 580SN - (35.359.350) - LOADER, BACKHOE CONTROL VALVE, LINE, BRACKET (35) - HYDRAULIC SYSTEMS
35.359.205
7
3
6
3
2
5
2
1
6
8
4
27.100.030
35.359.155
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84523985

BRACKET

Loader PB Tube Mounting

1шт.

2

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

3

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

4

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

2шт.

5

1541537C1

PLATE

1шт.

6

87022323

CLAMP,25.4mm D Clamping Pipe

1шт.

7

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.
