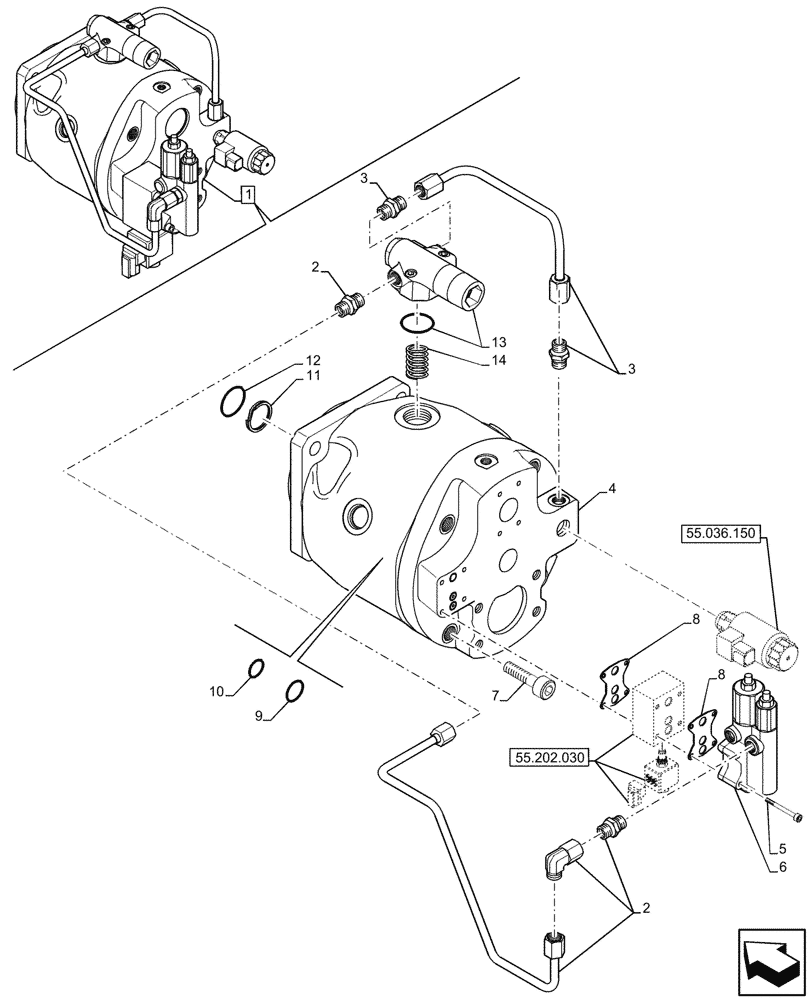

Запчасти Case 580SN (35.106.320) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/O POWER LIFT, W/ DUAL BATTERIES), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84545278

HYDRAULIC PUMP,71 CC

ASSY, Incl 2 - 14

1шт.

71cc, High Pressure Cutoff (HPCO)

1шт.

See also Hydraulic Pump Components in Figures 55.036.150, 55.202.030

1шт.

2

47369295

REPAIR KIT

Control Tube, Long, Cold Start

1шт.

3

84499592

SERVICE KIT

Control Tube, Short

1шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

5

10589621

SCREW,Hex Skt, M6 x 80mm, Cl 8.8

4шт.

6

84312294

CONTROL VALVE

1шт.

7

84312223

HEX SOC SCREW

4шт.

8

84312299

GASKET

2шт.

9

84312210

O-RING

1шт.

10

84312220

O-RING

4шт.

11

84312221

RING

1шт.

12

84312204

SEALING RING

2шт.

13

84311937

CONTROL VALVE

1шт.

14

47822288

SPRING KIT

Torque Control, 71CC

1шт.
