(35.106.310) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/O POWER LIFT, W/ DUAL BATTERIES)

Запчасти Case 580SN (35.106.310) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/O POWER LIFT, W/ DUAL BATTERIES) (35) - HYDRAULIC SYSTEMS

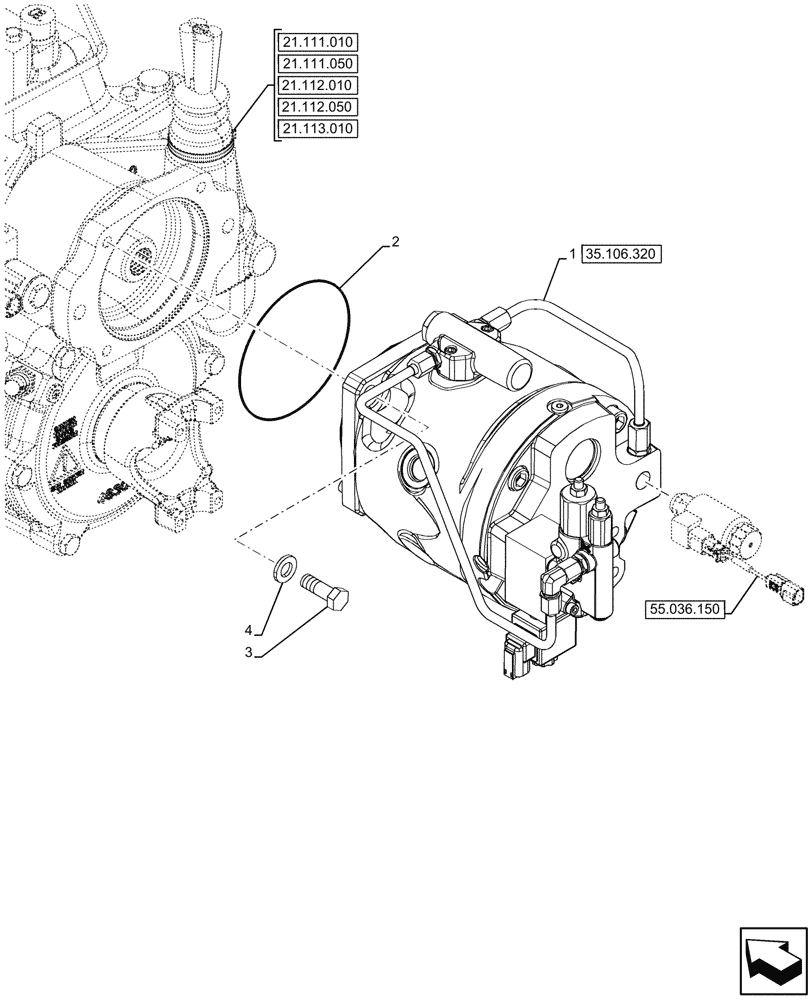

Схема запчастей Case 580SN - (35.106.310) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/O POWER LIFT, W/ DUAL BATTERIES) (35) - HYDRAULIC SYSTEMS
21.111.010
4
2
3
1
21.111.050
21.112.050
21.112.010
55.036.150
35.106.320
21.113.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84545278

HYDRAULIC PUMP,71 CC

ASSY

1шт.

71cc, High Pressure Cutoff (HPCO)

1шт.

2

175156

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

3

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

4

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

Выбрано товаров: 5
