(35.106.220) - VAR - 423080 - VARIABLE DISPLACEMENT HYDRAULIC PUMP, COUPLER, MECHANICAL, PORT

Запчасти Case 580SN (35.106.220) - VAR - 423080 - VARIABLE DISPLACEMENT HYDRAULIC PUMP, COUPLER, MECHANICAL, PORT (35) - HYDRAULIC SYSTEMS

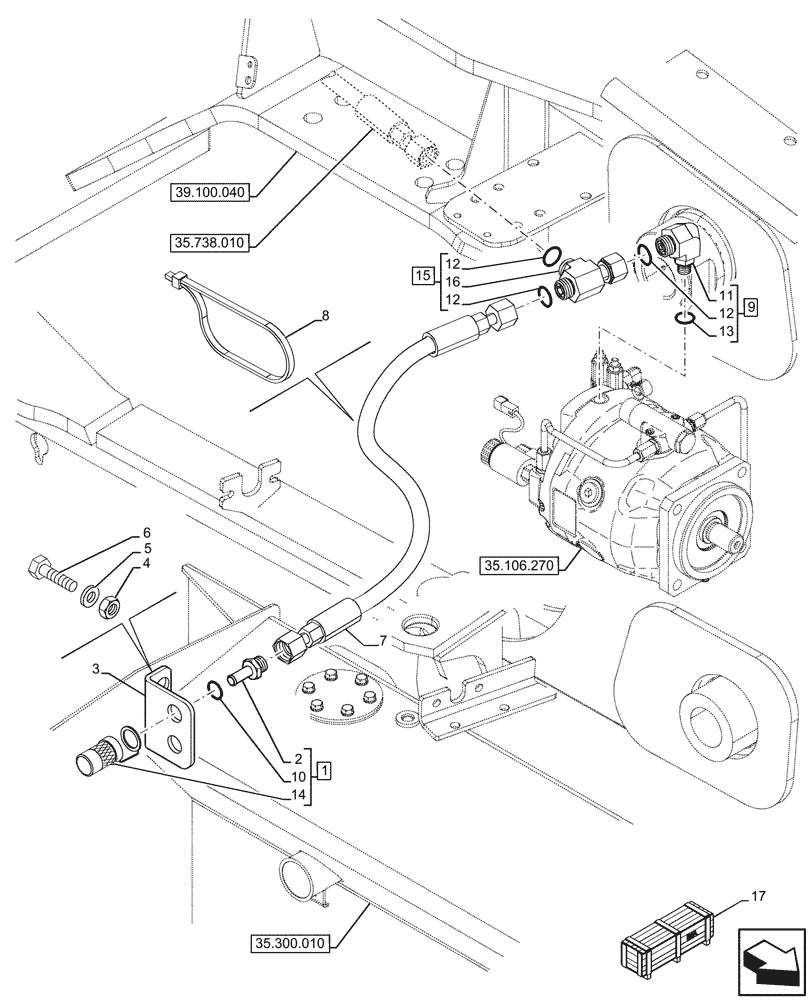

Схема запчастей Case 580SN - (35.106.220) - VAR - 423080 - VARIABLE DISPLACEMENT HYDRAULIC PUMP, COUPLER, MECHANICAL, PORT (35) - HYDRAULIC SYSTEMS
39.100.040
2
12
17
4
12
10
15
7
11
13
9
6
16
1
8
14
12
5
3
35.300.010
35.106.270
35.738.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

85817226

QUICK MALE COUPLING,11/16" - 16 OD

ASSY, Incl 2, 10, 14

1шт.

2

NSS

NOT SOLD SEPARAT

Coupler, Diagnostic, Incl in 1

1шт.

3

84477533

BULKHEAD

1шт.

4

9706690

NUT,M8 x 1.25, Cl 8

2шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

7

84480362

HOSE,6.3mm ID x 712mm L

Remote P Diagnostic Port

1шт.

8

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

9

9843592

ELBOW,11/16"-16 UN-2A x 7/16"-20UN-2A

ASSY, Incl 11, 12 (Qty 1), 13

1шт.

10

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

9968791

PLUG

1шт.

15

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

ASSY, Incl 12 (Qty 2), 16

1шт.

16

NSS

NOT SOLD SEPARAT

Tee, Incl in 15

1шт.

17

84561133

CONSTRUCTION DIA

Power Lift, Incl 7, 12, 15, 16

1шт.

Valid for 580SN (Livery) Model only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
