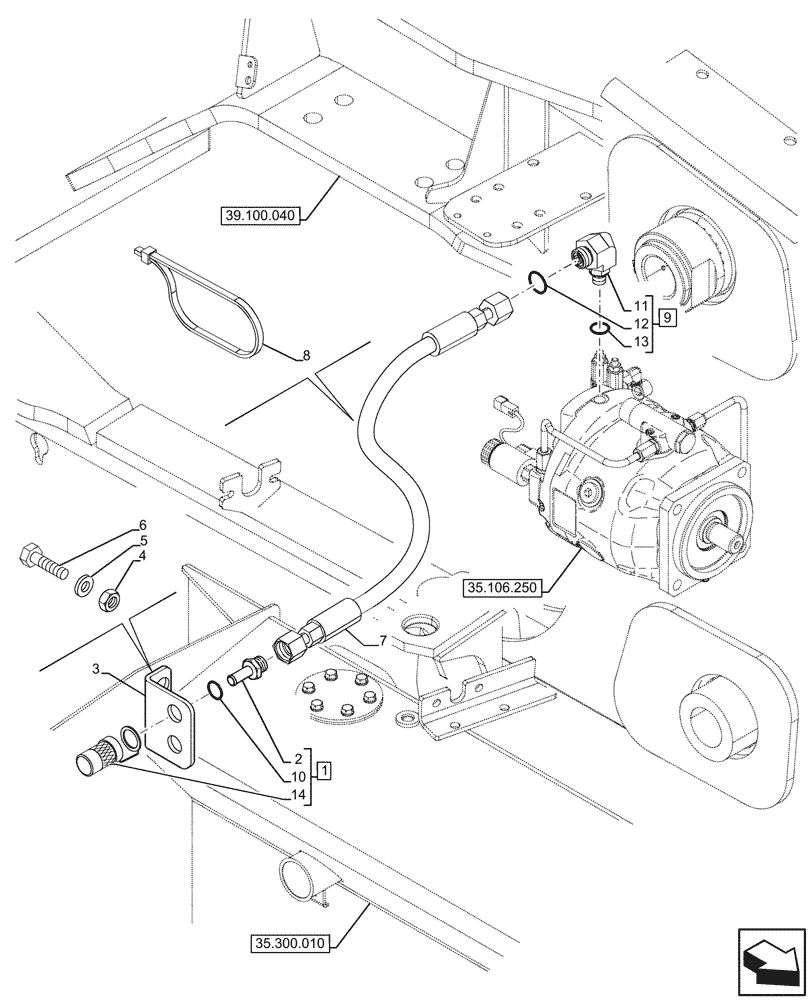

Запчасти Case 580SN (35.106.190) - VARIABLE DISPLACEMENT HYDRAULIC PUMP, COUPLER, MECHANICAL, PORT (35) - HYDRAULIC SYSTEMS

1

85817226

QUICK MALE COUPLING,11/16" - 16 OD

ASSY, Incl 2, 10, 14

1шт.

2

NSS

NOT SOLD SEPARAT

Coupler, Diagnostic, Incl in 1

1шт.

3

84477533

BULKHEAD

1шт.

4

9706690

NUT,M8 x 1.25, Cl 8

2шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

7

84480362

HOSE,6.3mm ID x 712mm L

Remote P Diagnostic Port

1шт.

8

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

9

9843592

ELBOW,11/16"-16 UN-2A x 7/16"-20UN-2A

ASSY, Incl 11 - 13

1шт.

10

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

9968791

PLUG

1шт.
