(27.120.030) - REAR AXLE, FINAL DRIVE, PLANETARY GEAR, COMPONENTS

Запчасти Case 580SN (27.120.030) - REAR AXLE, FINAL DRIVE, PLANETARY GEAR, COMPONENTS (27) - REAR AXLE SYSTEM

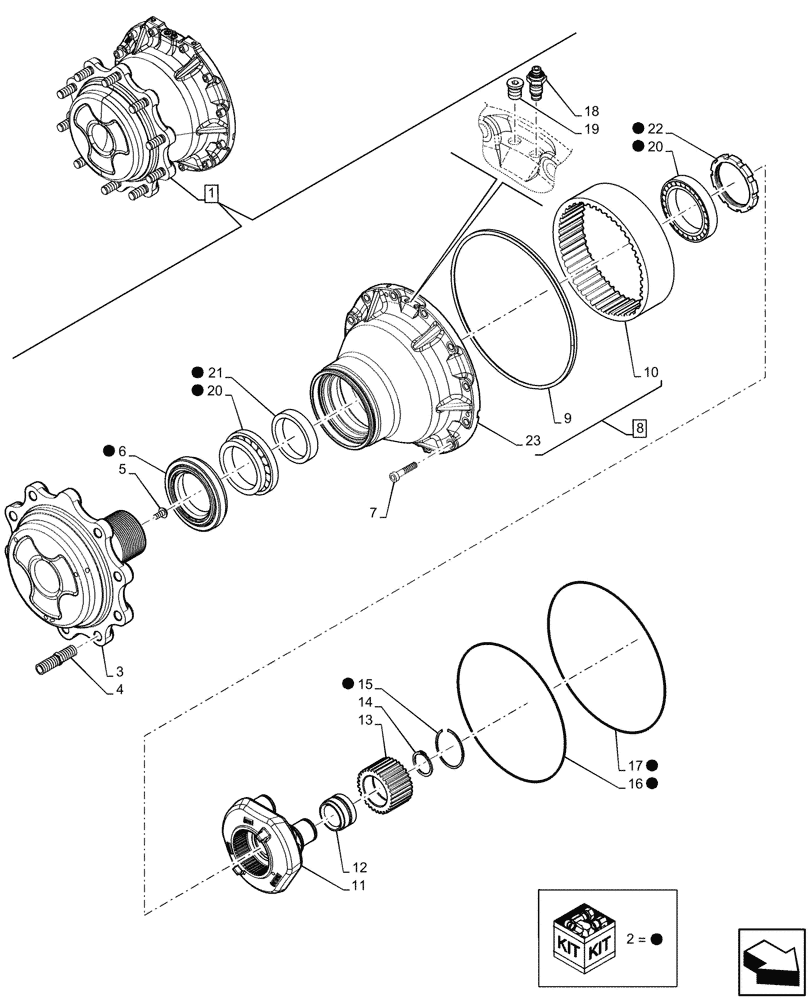

Схема запчастей Case 580SN - (27.120.030) - REAR AXLE, FINAL DRIVE, PLANETARY GEAR, COMPONENTS (27) - REAR AXLE SYSTEM
10
11
22
6
23
2
12
2
17
4
21
9
18
13
2
15
5
2
8
20
7
3
2
2
2
14
16
20
19
2
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47566688

HUB

ASSY, Incl 2 - 23

1шт.

2

47579403

KIT

ASSY, Ring Nut, Incl 6, 15 - 17, 20 - 22

1шт.

3

87708445

FLANGE

Wheel

1шт.

4

D142986

STUD,88mm L

Bolt

10шт.

5

K395093

HEADED PIN,12mm OD x 15mm L

Headed Pin

1шт.

6

452140A1

SEALING RING,150mm ID x 180mm OD x 14.5mm W

1шт.

7

403955A1

BOLT

12шт.

8

87708466

GEAR SET

ASSY, Incl 9, 10, 23

1шт.

9

87708467

RING GEAR

1шт.

10

87711038

RING

1шт.

11

87708452

PLANET CARRIER

1шт.

12

87708444

ROLLER BEARING

Roller

3шт.

13

87708443

GEAR

Wheel Hub

3шт.

14

800-1150

SNAP RING,M50, Ext

3шт.

15

87708453

SNAP RING

1шт.

16

371144A1

O-RING

Piston External

1шт.

17

87708438

O-RING

1шт.

18

E135809

PLUG

1шт.

19

E135810

VENTING SCREW

1шт.

20

NSS

NOT SOLD SEPARAT

Tapered Bearing, Incl in 2

2шт.

21

87708447

SPACER

Spacer

2шт.

22

NSS

NOT SOLD SEPARAT

Ring Nut, Incl in 2

2шт.

23

NSS

NOT SOLD SEPARAT

Hub, Incl in 8

1шт.
