(27.100.040) - REAR AXLE, HOUSING

Запчасти Case 580SN (27.100.040) - REAR AXLE, HOUSING (27) - REAR AXLE SYSTEM

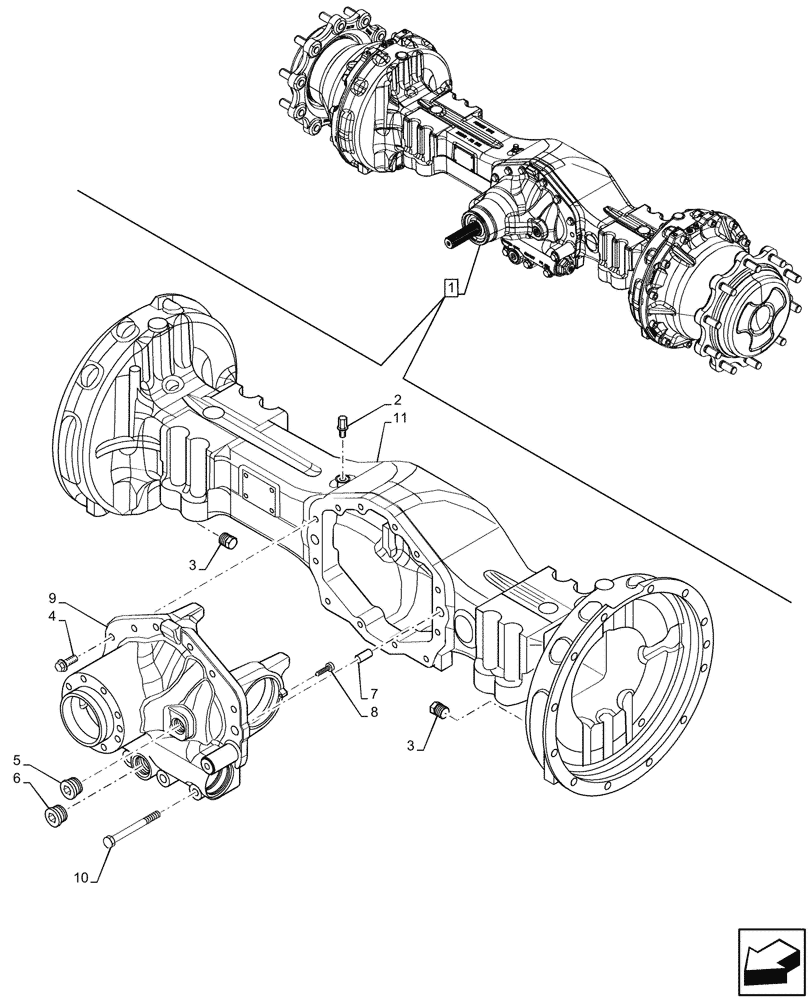

Схема запчастей Case 580SN - (27.100.040) - REAR AXLE, HOUSING (27) - REAR AXLE SYSTEM
5
4
9
8
1
3
2
7
11
6
10
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84178115

REAR AXLE

ASSY, Rear, Incl 2 - 11

1шт.

See also Rear Axle Components in Figures 27.106.040, 27.106.050, 27.106.060, 27.120.020, 33.202.070

1шт.

2

1966149C1

BREATHER

1шт.

3

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

4

S301064

BOLT,M12

8шт.

5

434746A1

PLUG,M24 x 1.5

1шт.

6

100557A1

PLUG, DRAIN,M30 x 2

1шт.

7

1966138C1

DOWEL

Centering

2шт.

8

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

9

87708391

CARRIER,Bevel Gear

Differential Support

1шт.

10

87708392

BOLT,Hex, M12 x 100mm

4шт.

11

87708390

AXLE HOUSING

Rear

1шт.
