(25.400.040) - FRONT AXLE, WHEEL DISC, 2WD

Запчасти Case 580SN (25.400.040) - FRONT AXLE, WHEEL DISC, 2WD (25) - FRONT AXLE SYSTEM

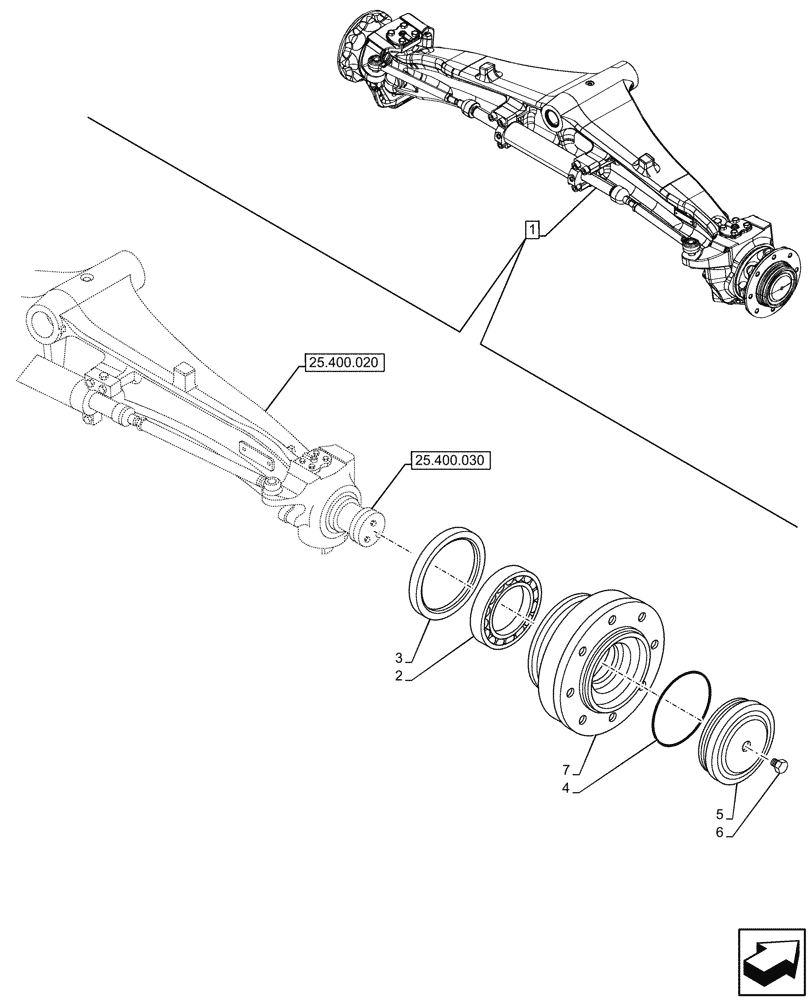

Схема запчастей Case 580SN - (25.400.040) - FRONT AXLE, WHEEL DISC, 2WD (25) - FRONT AXLE SYSTEM
25.400.020
4
2
5
1
6
7
3
25.400.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86990836

FRONT AXLE

ASSY, LV80, Incl 2 - 7

1шт.

See also Front Axle Components in Figures 25.400.020, 25.400.030, 41.106.010, 41.216.010

1шт.

2

324213A1

ROLLER BEARING

1шт.

3

311569A1

OIL SEAL,130mm ID x 160mm OD x 14mm Thk

Hub Oil SRVC

1шт.

4

401066A1

O-RING

1шт.

5

401067A1

COVER

1шт.

6

D142898

PLUG,M10 x 1

M10 x 1

1шт.

7

401065A1

HUB

Wheel

1шт.
