Запчасти Case 580SN (25.108.010) - FRONT AXLE, COMPONENTS, STEERING KNUCKLE, PIN, STD, 4WD (25) - FRONT AXLE SYSTEM

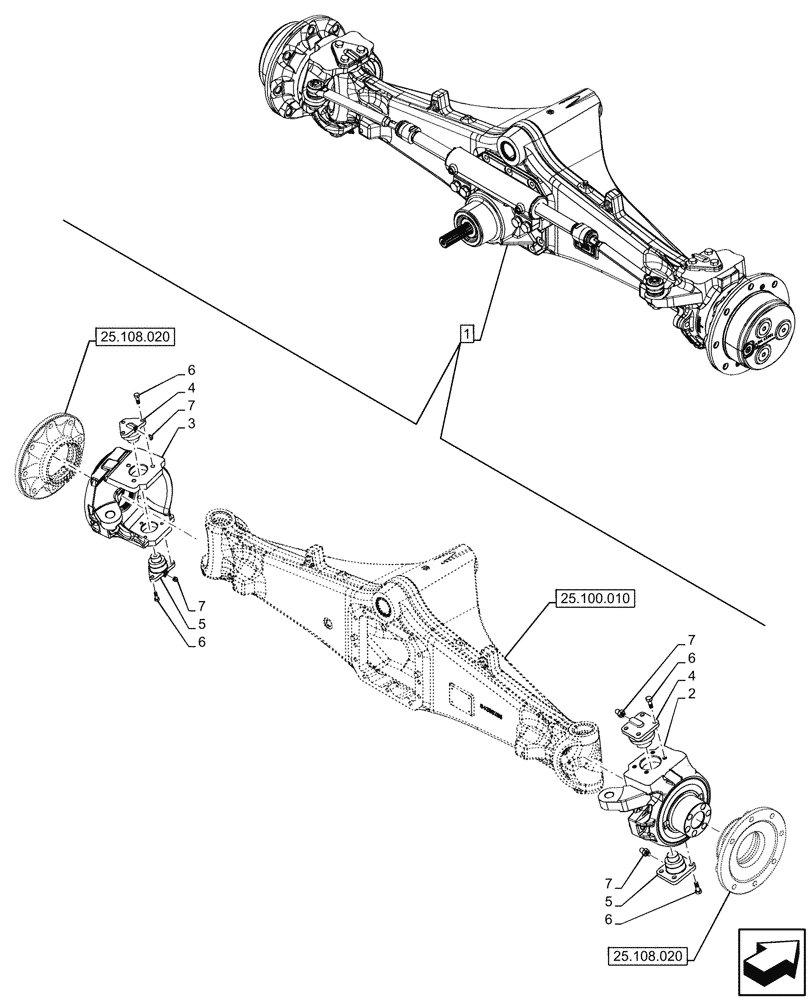

Схема запчастей Case 580SN - (25.108.010) - FRONT AXLE, COMPONENTS, STEERING KNUCKLE, PIN, STD, 4WD (25) - FRONT AXLE SYSTEM
25.108.020
7
6
6
7
2
1
6
3
7
5
4
4
6
7
5
25.100.010
25.108.020

Артикул

Название

Примечание

Количество

1

47559839

FRONT AXLE

ASSY, Grey, PS1321 ACP, 12.1-1, Incl 2 - 7

1шт.

See also Front Axle Components in Figures 25.100.020, 25.100.030, 25.102.010, 25.102.020, 25.108.020, 25.108.030, 25.108.040, 25.310.010, 41.106.040, 41.216.040

1шт.

2

47724319

STEERING KNUCKLE

RH

1шт.

3

47724320

STEERING KNUCKLE

LH

1шт.

4

84259754

PIN,49.9mm OD x 48mm L

King Steering Knuckle Top

2шт.

5

84259753

PIN,49.9mm OD x 45mm L

King Steering Knuckle Bottom

2шт.

6

84273749

BOLT,M14 x 2 x 35mm

12шт.

7

84351730

FITTING,M10 x 1

4шт.

Выбрано товаров: 8
