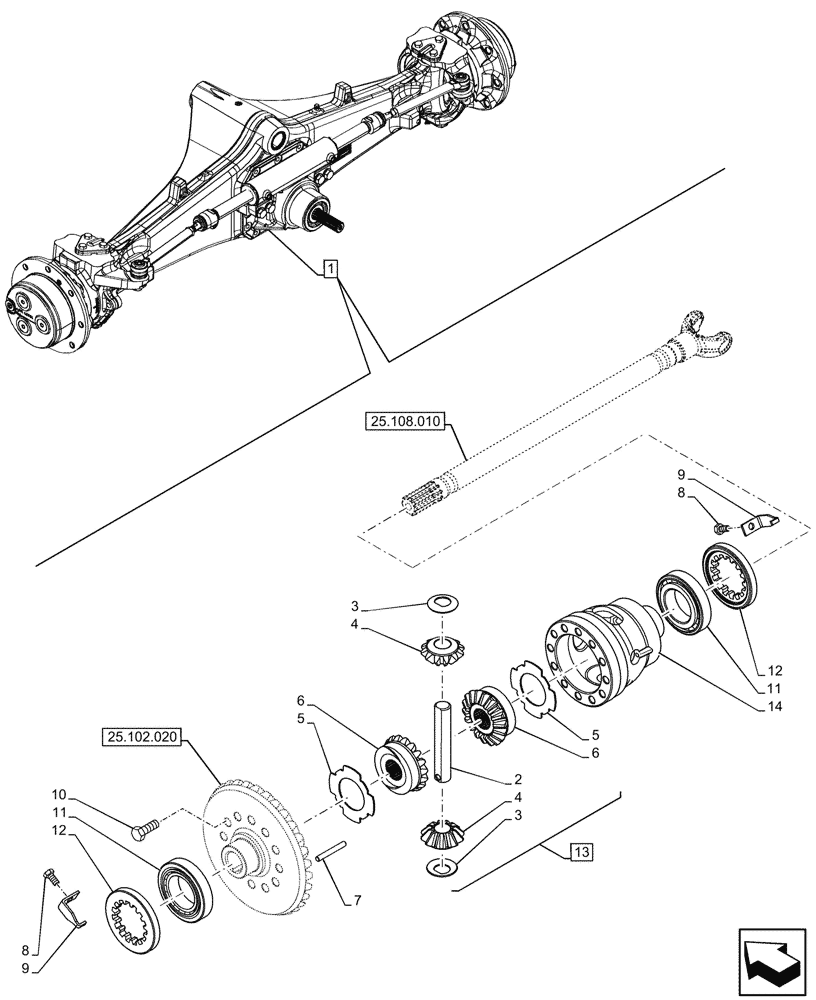

Запчасти Case 580SN (25.102.010) - FRONT AXLE, COMPONENTS, DIFFERENTIAL GEAR, 4WD (25) - FRONT AXLE SYSTEM

1

47559839

FRONT AXLE

ASSY, Grey, PS1321 ACP, 12.1-1, Incl 2 - 14

1шт.

See also Front Axle Components in Figures 25.100.020, 25.100.030, 25.102.020, 25.108.010, 25.108.020, 25.108.030, 25.108.040, 25.310.010, 41.106.040, 41.216.040

1шт.

2

84268545

PIN,21.9mm OD x 122.9mm L

Differential Cross

1шт.

3

87727553

THRUST WASHER,20.27mm ID x 41.75mm OD x 1.5mm Thk

Pinion

2шт.

4

47777024

PINION,12T

2шт.

5

84225954

DISC,69.7mm OD x 1.5mm Thk

Clutch Separator

1шт.

6

47777025

GEAR,18T

2шт.

7

84268547

PIN,6.99mm OD x 61.5mm L

Dowel

1шт.

8

84273742

BOLT,Hex, Lock, M8 x 1.25 x 16mm, Cl. 10.9

2шт.

9

87748532

RETAINER

Bearing Lock

2шт.

10

84273744

LOCK BOLT,Hex, Lock, M12 x 1.75 x 30mm, Cl. 10.9

12шт.

11

561201

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

2шт.

12

4966240

BEARING LOCK NUT,M95 x 2, 15T

2шт.

13

84411585

DIFFERENTIAL GEAR

ASSY, Incl 2 - 6

1шт.

14

84253805

AXLE HOUSING

Differential

1шт.
