(23.314.040) - REAR AXLE, DRIVE SHAFT

Запчасти Case 580SN (23.314.040) - REAR AXLE, DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

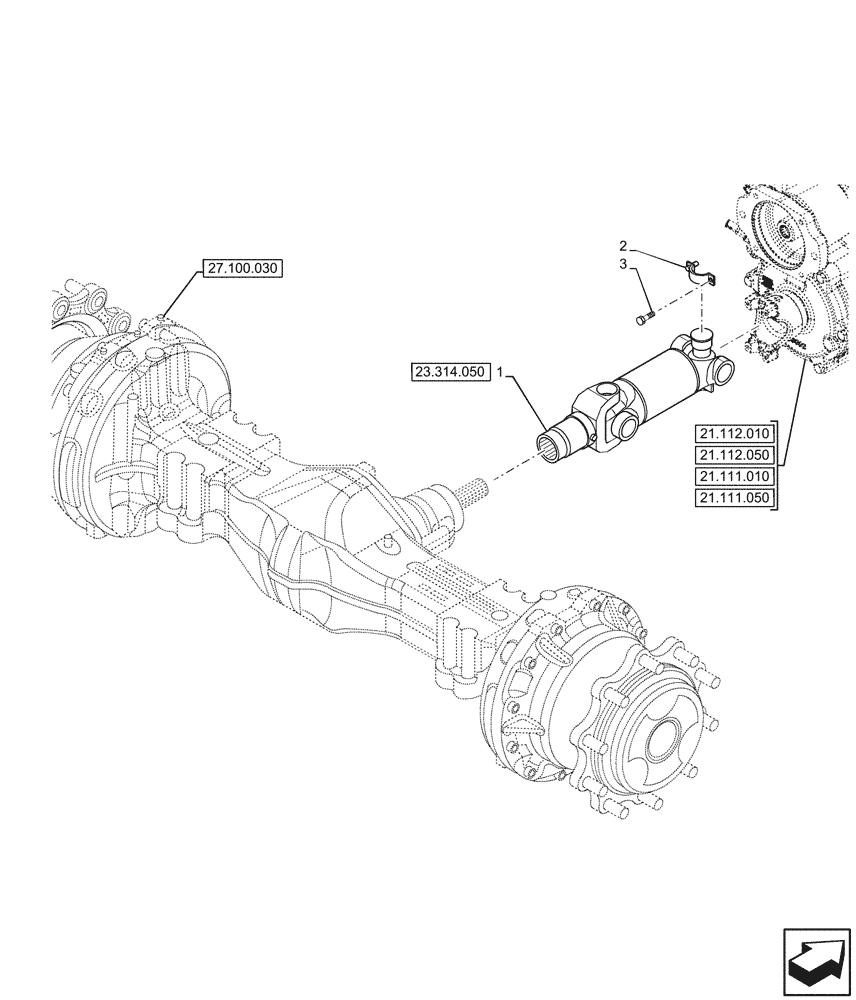

Схема запчастей Case 580SN - (23.314.040) - REAR AXLE, DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM
21.111.010
2
3
1
27.100.030
21.111.050
21.112.050
21.112.010
23.314.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87613924

DRIVE SHAFT

ASSY, Rear

1шт.

2

D137626

CLAMP,30.175mm D Clamping Pipe

Driveshaft Spider Bearing

2шт.

3

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

4шт.
