Запчасти Case 580SN (21.700.050) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, TORQUE CONVERTER, 4WD (21) - TRANSMISSION

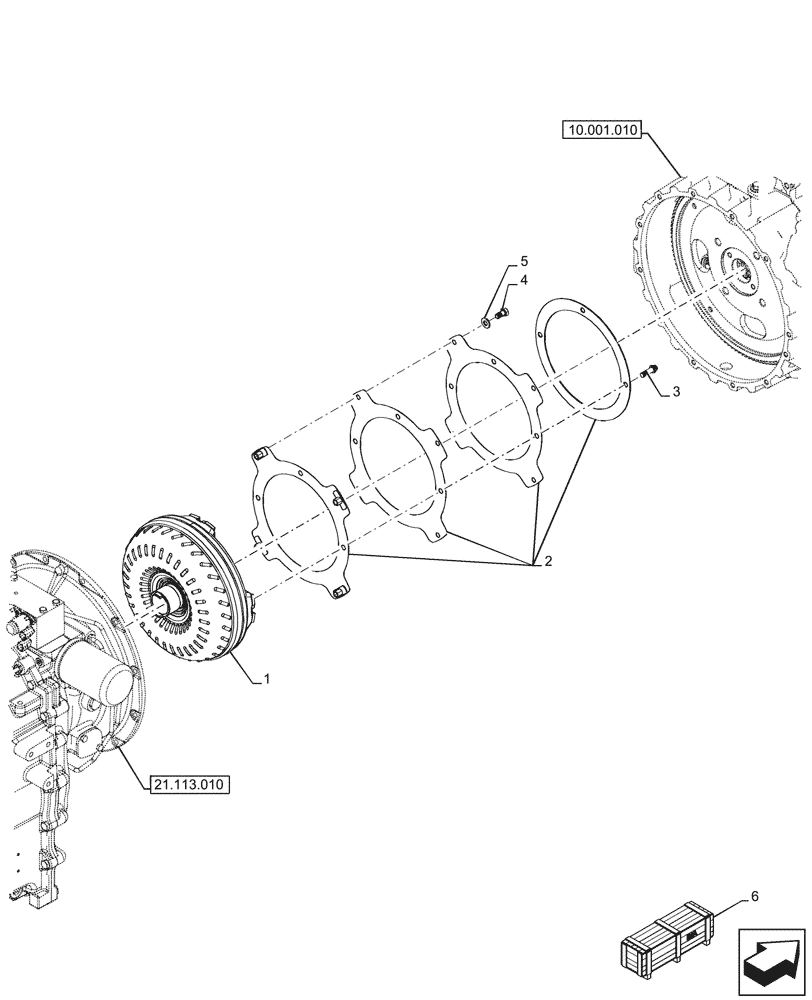

Схема запчастей Case 580SN - (21.700.050) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, TORQUE CONVERTER, 4WD (21) - TRANSMISSION
21.113.010
3
6
5
2
4
1
10.001.010

Артикул

Название

Примечание

Количество

1

87702193

CONVERTER

Torque

1шт.

2

47442982

KIT

Flex Plate

1шт.

3

14420231

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

6

47411176

CONSTRUCTION DIA

Torque Converter, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 7
