Запчасти Case 580SN (21.155.030) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, DRIVE SHAFT, 4WD (21) - TRANSMISSION

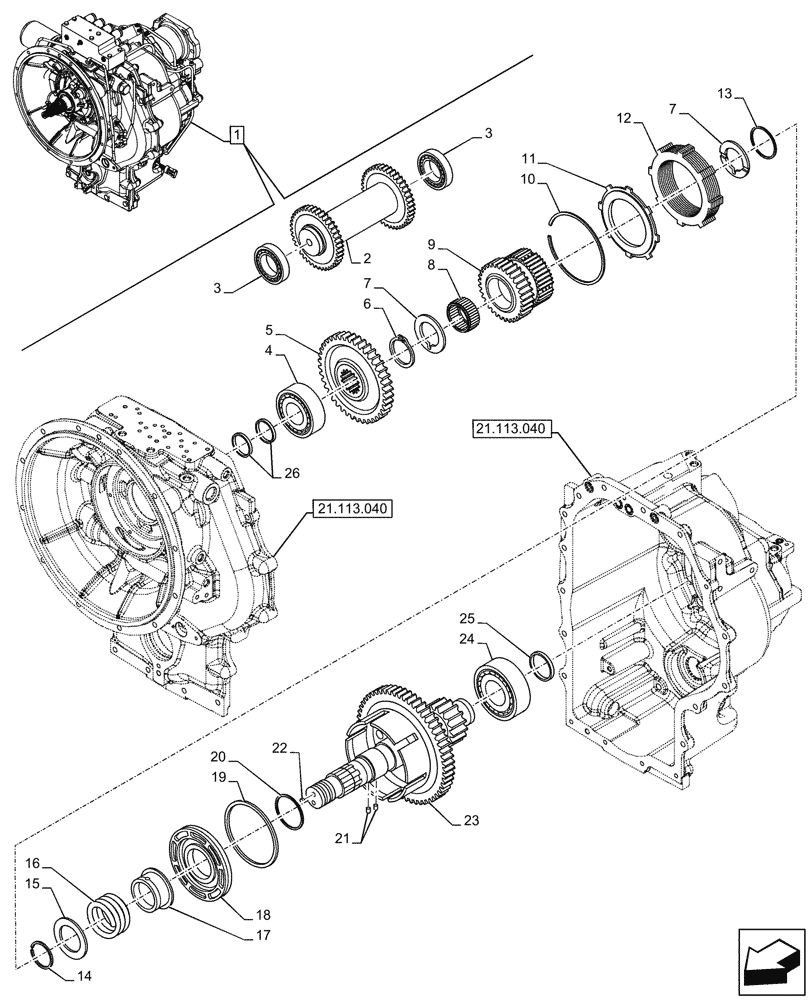

Схема запчастей Case 580SN - (21.155.030) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, DRIVE SHAFT, 4WD (21) - TRANSMISSION
21.113.040
10
24
14
9
3
23
4
16
12
7
2
13
5
7
21
11
25
1
8
18
6
15
19
22
17
26
20
3
21.113.040

Артикул

Название

Примечание

Количество

1

87567534

TRANSMISSION

ASSY, TLB 2, Powershift, Incl 2 - 26

1шт.

See also Transmission Components in Figures 21.105.020, 21.105.030, 21.113.030, 21.113.040, 21.155.010, 21.155.020, 21.155.040, 21.155.050, 21.155.060, 33.110.050, 55.020.030, 55.022.060, 55.024.070, 55.024.110, 55.031.090, 55.031.100

1шт.

2

358636A1

SHAFT,27T

Idler

1шт.

3

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

2шт.

4

87705462

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

1шт.

5

87705463

GEAR,45T

Powershift Transmission

1шт.

6

800-1150

SNAP RING,M50, Ext

1шт.

7

358640A1

WASHER

2шт.

8

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

9

87705464

GEAR,28T

Powershift Transmission

1шт.

10

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

11

310519A1

PLATE

2шт.

12

87705465

CLUTCH OVERHAUL KIT

2nd Speed, 3rd Speed

1шт.

13

87705466

THRUST WASHER

1шт.

14

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

1шт.

15

181161A1

PLATE, THRUST

1шт.

16

358637A1

SPRING

Piston, Return

1шт.

17

358641A1

TRANSMISSION SLEEVE

1шт.

18

358644A1

PISTON

Clutch

1шт.

19

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

1шт.

20

358642A1

SEALING RING

1шт.

21

181108A1

SPLIT PIN,3mm OD x 8mm L

2шт.

22

87701779

RIVET,7mm OD

1шт.

23

87705468

SHAFT,58/17T

Powershift Transmission

1шт.

24

87705469

BALL BEARING,45 mm ID x 100 mm OD x 25 mm

1шт.

25

358645A1

SEALING RING

1шт.

26

87705461

SEALING RING

2шт.

Выбрано товаров: 27
