Запчасти Case 580SN (21.154.110) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, SYNCHRONIZER, 4WD (21) - TRANSMISSION

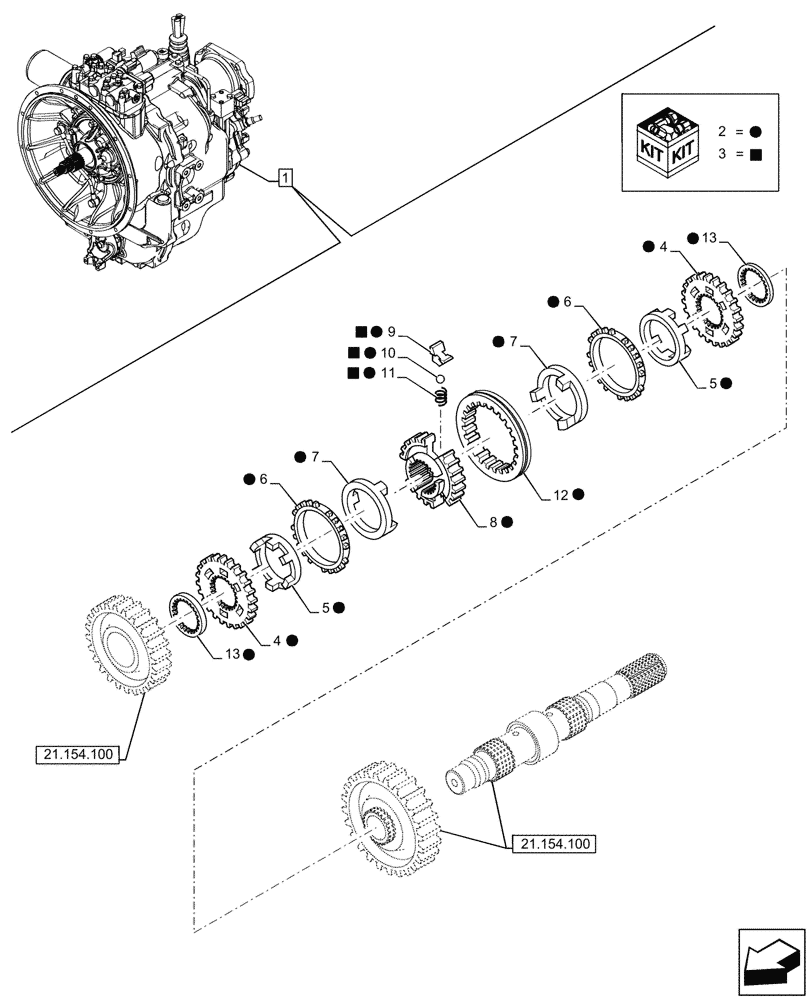

Схема запчастей Case 580SN - (21.154.110) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, SYNCHRONIZER, 4WD (21) - TRANSMISSION
21.154.100
2
6
2
9
2
2
5
6
4
3
12
3
2
8
13
2
2
2
7
2
2
11
2
2
2
1
7
3
2
5
4
3
10
2
2
13
21.154.100

Артикул

Название

Примечание

Количество

1

87395301

TRANSMISSION

ASSY, TLB 1 Up with SAHR, Incl 2 - 13

1шт.

See also Transmission Components in Figures 21.104.040, 21.112.060, 21.112.080, 21.134.050, 21.134.060, 21.134.070, 21.154.070, 21.154.080, 21.154.090, 21.154.100, 21.154.120, 21.154.130, 33.110.020, 55.024.040, 55.031.030, 55.031.040

1шт.

2

190427A1

SYNCHRONIZER,90T

ASSY, Double Cone, Incl 3 - 13

1шт.

3

84336848

SERVICE KIT

ASSY, Ball, Poppet and Spring for Synchronizer D90 Single Cone

1шт.

4

NSS

NOT SOLD SEPARAT

Synchronizing Ring, Incl in 2

2шт.

5

NSS

NOT SOLD SEPARAT

Steel Ring, Incl in 2

2шт.

6

NSS

NOT SOLD SEPARAT

Sintered Ring, Incl in 2

2шт.

7

NSS

NOT SOLD SEPARAT

Tapered Friction Ring, Incl in 2

2шт.

8

NSS

NOT SOLD SEPARAT

Hub, Incl in 2

2шт.

9

326865A1

SPACER

3шт.

10

384769A1

BALL

3шт.

11

384773A1

COIL SPRING

3шт.

12

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 2

1шт.

13

244109A1

SPACER

2шт.

Выбрано товаров: 14
