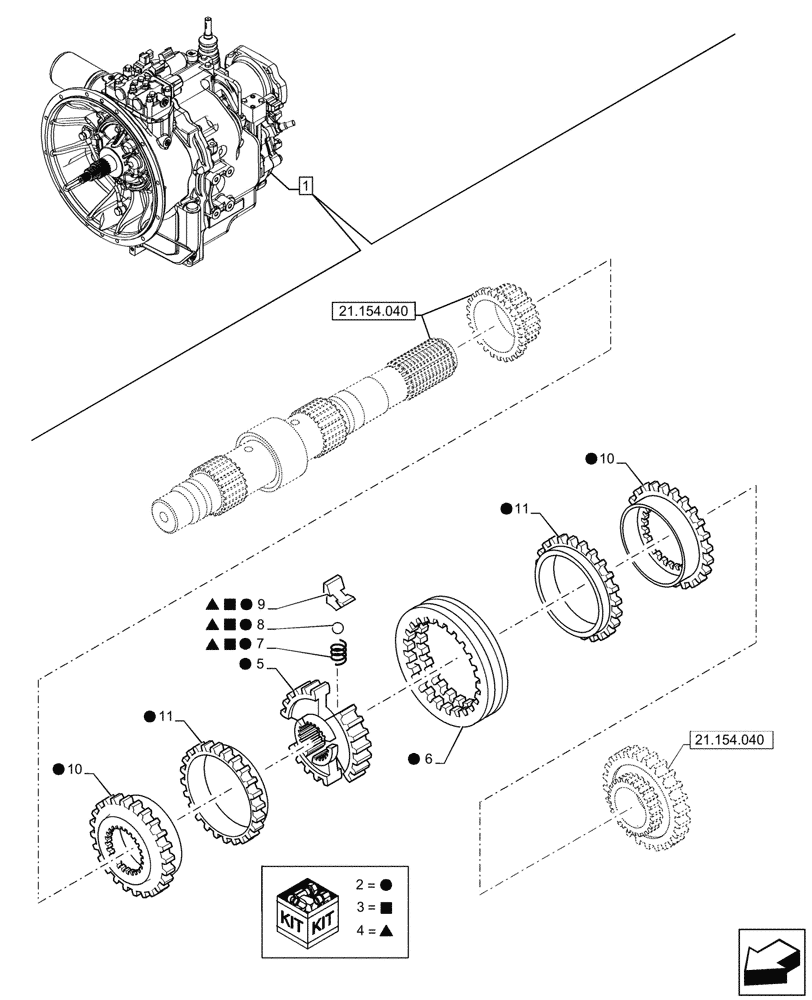

Запчасти Case 580SN (21.154.060) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, SYNCHRONIZER, 2WD (21) - TRANSMISSION

1

87395300

TRANSMISSION

ASSY, TLB 1 Up with SAHR, Incl 2 - 11

1шт.

See also Transmission Components in Figures 21.104.020, 21.112.030, 21.112.070, 21.134.020, 21.134.030, 21.154.010, 21.154.020, 21.154.030, 21.154.040, 21.154.050, 33.110.010, 55.031.010, 55.031.020

1шт.

2

87429974

SYNCHRONIZER

ASSY, D90 Single Cone, Incl 3 - 11

1шт.

3

326863A1

SERVICE KIT

ASSY, Ball, Poppet and Spring for Synchronizer D90 Single Cone

1шт.

4

84336848

SERVICE KIT

ASSY, Ball, Poppet and Spring for Synchronizer D90 Single Cone

1шт.

5

NSS

NOT SOLD SEPARAT

Hub, Incl in 2

1шт.

6

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Spring, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

Ball, Incl in 2

1шт.

9

NSS

NOT SOLD SEPARAT

Plate, Incl in 2

1шт.

10

NSS

NOT SOLD SEPARAT

Clutch Ring, Incl in 2

2шт.

11

NSS

NOT SOLD SEPARAT

Tapered Friction Ring, Incl in 2

2шт.
