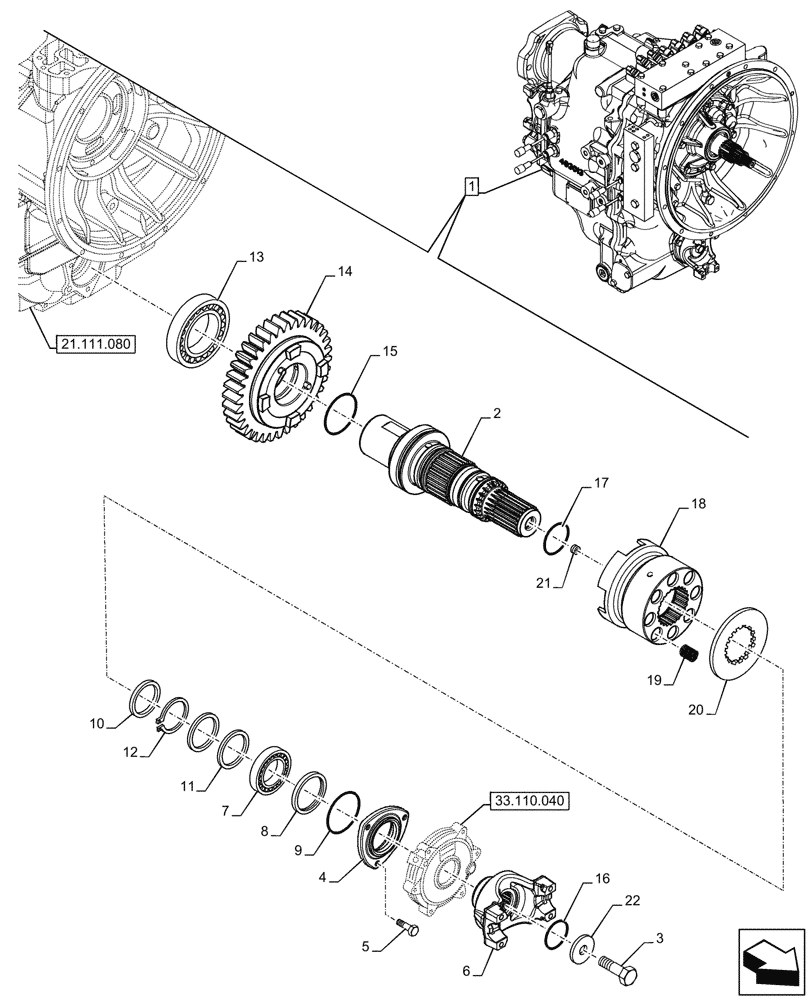

Запчасти Case 580SN (21.152.110) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, DRIVEN SHAFT, 4WD (21) - TRANSMISSION

1

84327512

TRANSMISSION

ASSY, Semi-powershift, 4WD, Incl 2 - 22

1шт.

See also Transmission Components in Figures 21.103.030, 21.103.040, 21.111.070, 21.111.080, 21.152.060, 21.152.070, 21.152.080, 21.152.090, 21.152.100, 33.110.040, 55.020.020, 55.021.020, 55.022.050, 55.023.020, 55.024.060, 55.024.100, 55.031.070, 55.031.080

1шт.

2

366230A1

SHAFT

Output

1шт.

3

P3533055

SCREW,M12 x 1.25 x 25mm

1шт.

4

181198A1

COVER

Front

1шт.

5

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

6

87704971

YOKE

1шт.

7

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

8

181122A1

OIL SEAL,50mm ID x 65mm OD x 8mm Thk

1шт.

9

112517A1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

1шт.

10

P2745478Q

WASHER

1шт.

11

358645A1

SEALING RING

2шт.

12

800-5145

SNAP RING,M45, Ext

1шт.

13

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

14

366234A1

PINION,36T

Driven

1шт.

15

366235A1

O-RING

1шт.

16

238-8217

O-RING,0.139" Thk x 1.171" ID, -217, Cl 8, 90 Duro

1шт.

17

366236A1

O-RING,3.53mm Thk x 42.85mm ID

1шт.

18

366232A1

TRANSMISSION SLEEVE

1шт.

19

100753A1

SPRING,Compression, 15mm OD x 41.2mm L

8шт.

20

366231A1

WASHER

1шт.

21

D142898

PLUG,M10 x 1

1шт.

22

P2745466

WASHER

1шт.
