Запчасти Case 580SN (21.152.070) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, PTO, INPUT SHAFT, 4WD (21) - TRANSMISSION

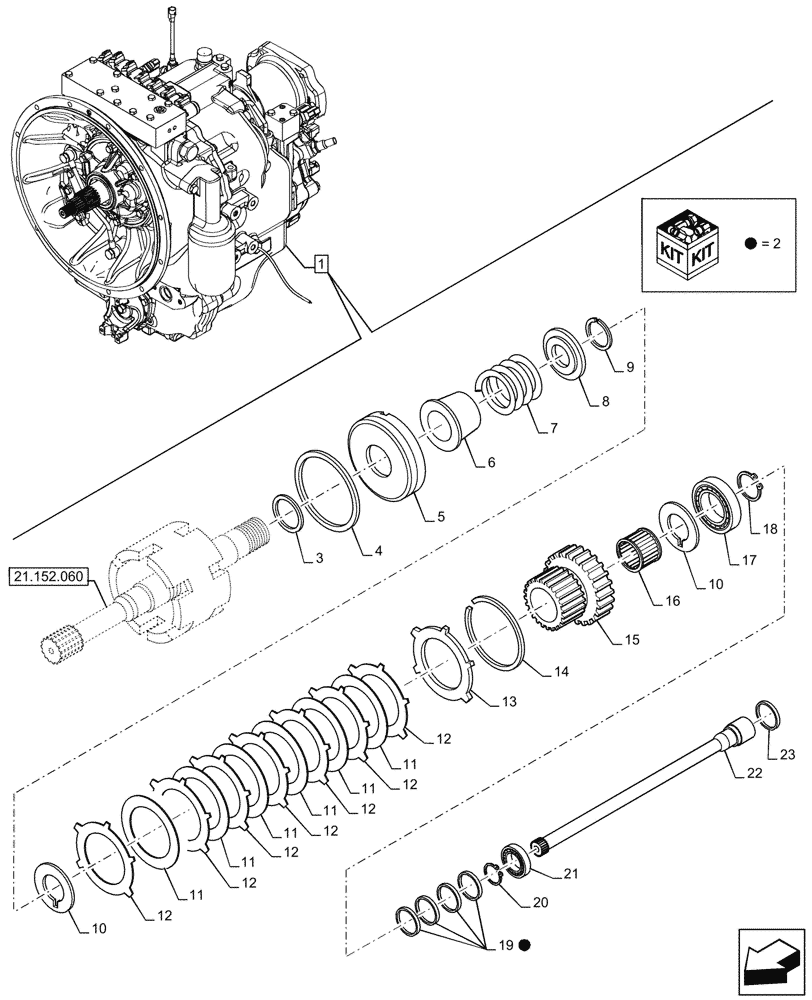

Схема запчастей Case 580SN - (21.152.070) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, PTO, INPUT SHAFT, 4WD (21) - TRANSMISSION
21.152.060
2
8
12
22
11
21
1
12
12
20
2
11
11
11
3
11
12
18
12
23
10
5
9
11
12
17
16
12
7
15
13
10
14
6
19
4

Артикул

Название

Примечание

Количество

1

84327512

TRANSMISSION

ASSY, Semi-powershift, 4WD, Incl 2 - 23

1шт.

See also Transmission Components in Figures 21.103.030, 21.103.040, 21.111.070, 21.111.080, 21.152.060, 21.152.080, 21.152.090, 21.152.100, 21.152.110, 33.110.040, 55.020.020, 55.021.020, 55.022.050, 55.023.020, 55.024.060, 55.024.100, 55.031.070, 55.031.080

1шт.

2

87525849

REPAIR KIT

ASSY, Input Shaft, Incl 19

1шт.

See also Repair Kit Components in Figure 21.152.060

1шт.

3

358642A1

SEALING RING

1шт.

4

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

1шт.

5

358644A1

PISTON

Clutch

1шт.

6

358641A1

TRANSMISSION SLEEVE

1шт.

7

358637A1

SPRING

1шт.

8

181161A1

PLATE, THRUST

1шт.

9

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

1шт.

10

358640A1

WASHER

2шт.

11

181158A1

CLUTCH DISC

6шт.

12

181159A1

DISC

7шт.

13

310519A1

PLATE

1шт.

14

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

15

358638A1

PINION,39T

Forward

1шт.

16

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

17

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

1шт.

18

800-1150

SNAP RING,M50, Ext

1шт.

19

87429984

RING

4шт.

20

800-1130

SNAP RING,M30, Ext

1шт.

21

87429983

BALL BEARING,30mm ID x 55mm OD x 13mm W

1шт.

22

87705460

PTO SHAFT

Semi-Powershift Transmission

1шт.

23

358645A1

SEALING RING

1шт.

Выбрано товаров: 25
