Запчасти Case 580SN (21.152.060) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, PTO, INPUT SHAFT, 4WD (21) - TRANSMISSION

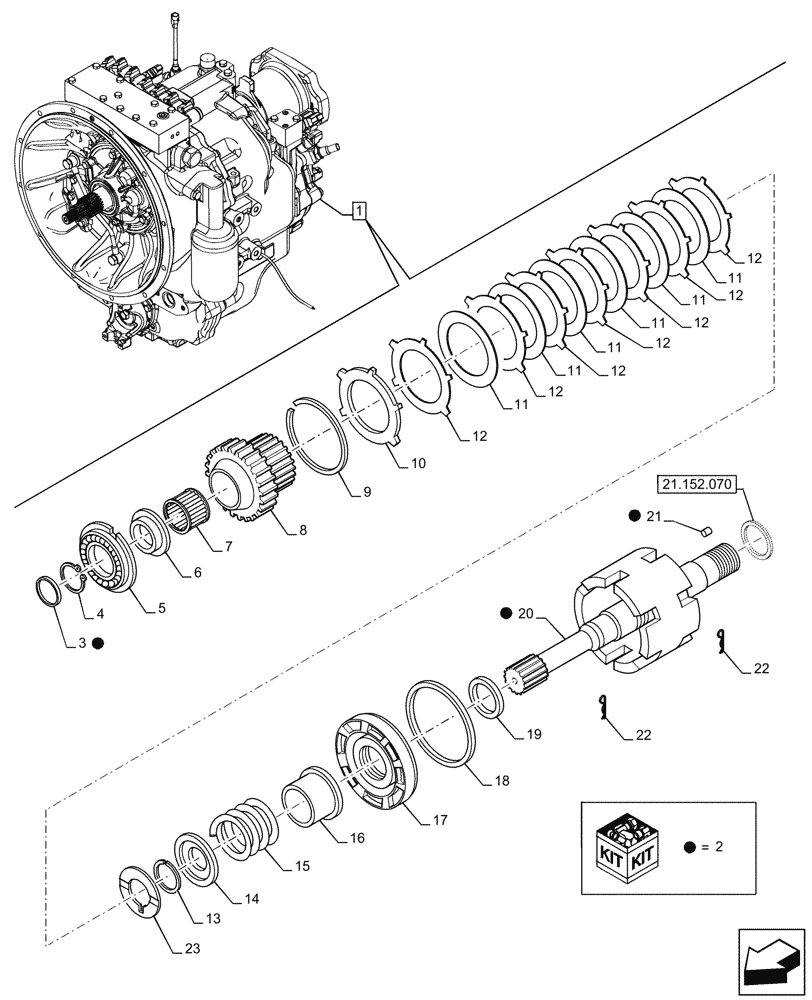

Схема запчастей Case 580SN - (21.152.060) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, PTO, INPUT SHAFT, 4WD (21) - TRANSMISSION
21.152.070
19
22
12
20
12
1
18
8
11
23
12
12
7
12
6
16
2
4
17
11
13
11
21
22
5
2
11
15
11
2
14
12
12
10
9
3
11
2

Артикул

Название

Примечание

Количество

1

84327512

TRANSMISSION

ASSY, Semi-powershift, 4WD, Incl 2 - 23

1шт.

See also Transmission Components in Figures 21.103.030, 21.103.040, 21.111.070, 21.111.080, 21.152.070, 21.152.080, 21.152.090, 21.152.100, 21.152.110, 33.110.040, 55.020.020, 55.021.020, 55.022.050, 55.023.020, 55.024.060, 55.024.100, 55.031.070, 55.031.080

1шт.

2

87525849

REPAIR KIT

ASSY, Input Shaft, Incl 3, 20, 21

1шт.

See also Repair Kit Components in Figure 21.152.070

1шт.

3

358645A1

SEALING RING

1шт.

4

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

1шт.

5

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

6

358635A1

SPACER

1шт.

7

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

8

358632A1

PINION,35T

Reverse

1шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

10

310519A1

PLATE

1шт.

11

181158A1

CLUTCH DISC

6шт.

12

181159A1

DISC

7шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

1шт.

14

181161A1

PLATE, THRUST

1шт.

15

358637A1

SPRING

1шт.

16

358641A1

TRANSMISSION SLEEVE

1шт.

17

358644A1

PISTON

Clutch

1шт.

18

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

1шт.

19

358642A1

SEALING RING

1шт.

20

NSS

NOT SOLD SEPARAT

Input Shaft, Incl in 2

1шт.

21

139312A1

PLUG,Expansion, 6mm OD

4шт.

22

181108A1

SPLIT PIN,3mm OD x 8mm L

2шт.

23

358640A1

WASHER

1шт.

Выбрано товаров: 25
