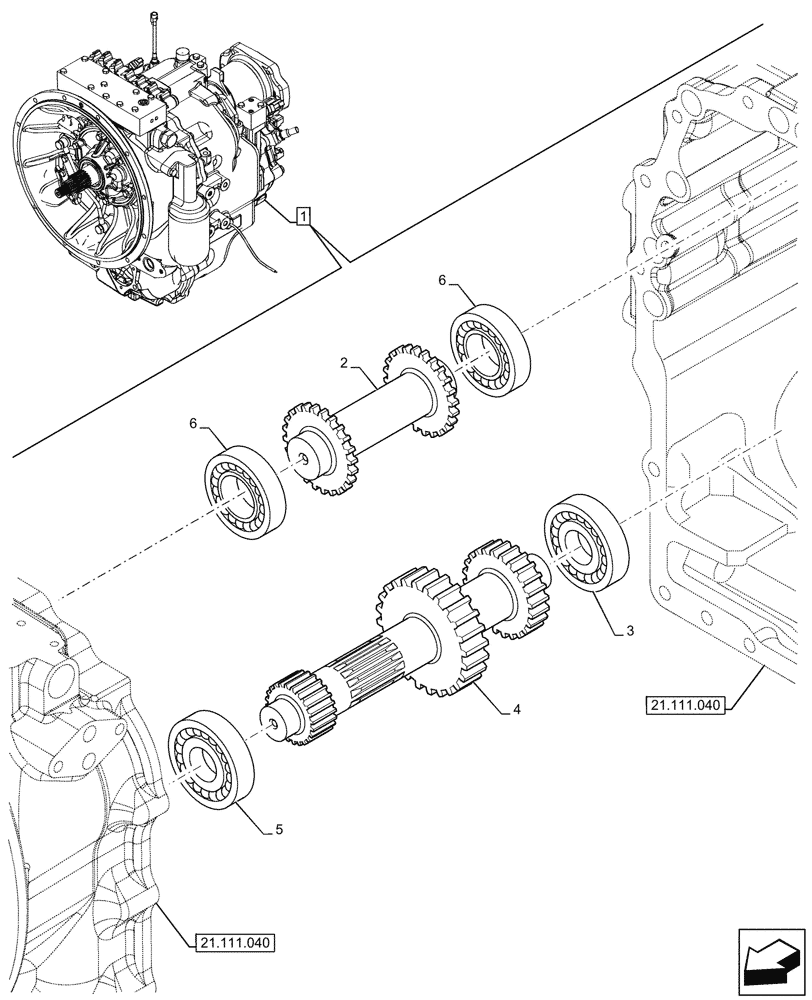

Запчасти Case 580SN (21.152.030) - VAR - 423060 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, DRIVE SHAFT, DRIVEN SHAFT, 2WD (21) - TRANSMISSION

1

84327511

TRANSMISSION

ASSY, Semi-Powershift, Incl 2 - 6

1шт.

See also Transmission Components in Figures 21.103.020, 21.111.030, 21.111.040, 21.152.010, 21.152.020, 21.152.040, 21.152.050, 33.110.030, 55.020.010, 55.021.010, 55.022.040, 55.023.010, 55.024.050, 55.024.080, 55.031.050, 55.031.060

1шт.

2

358636A1

SHAFT,27T

Idler

1шт.

3

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

4

87701276

PRIMARY SHAFT

Semi-Powershift

1шт.

5

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

6

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

2шт.
