(21.152.010) - VAR - 423060 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, PTO, INPUT SHAFT, 2WD

Запчасти Case 580SN (21.152.010) - VAR - 423060 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, PTO, INPUT SHAFT, 2WD (21) - TRANSMISSION

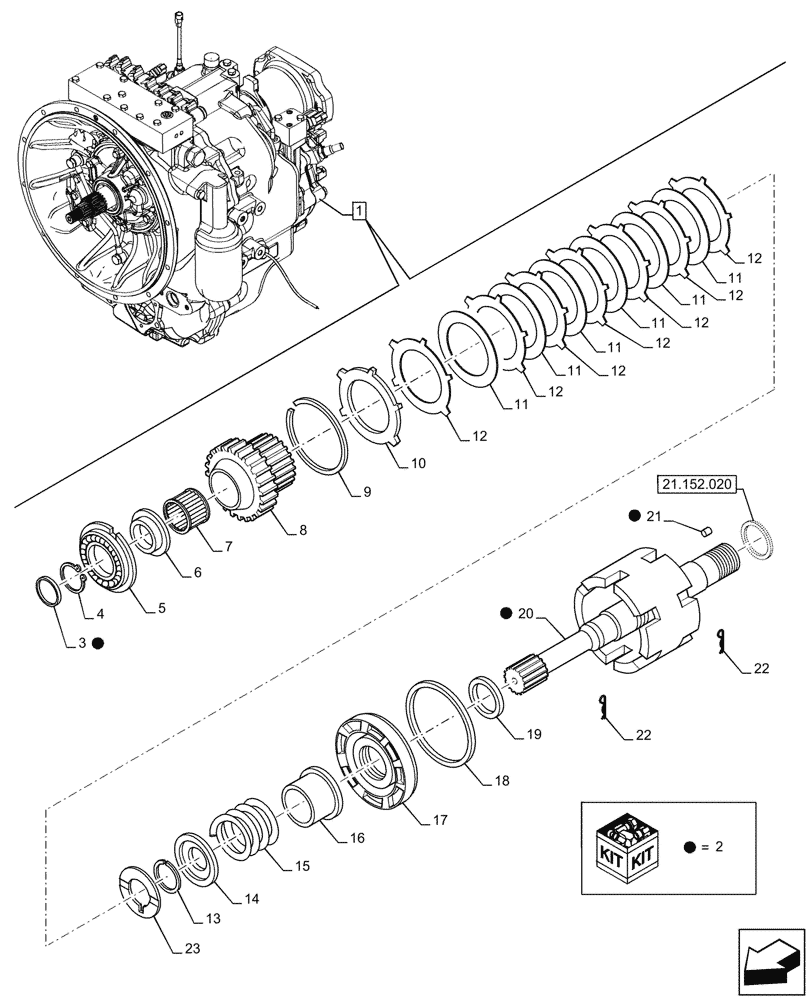

Схема запчастей Case 580SN - (21.152.010) - VAR - 423060 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, PTO, INPUT SHAFT, 2WD (21) - TRANSMISSION
13
7
2
21
22
9
1
16
11
12
2
23
2
11
3
4
11
12
10
12
12
6
5
17
14
12
15
11
11
20
19
2
22
12
18
8
12
11
21.152.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84327511

TRANSMISSION

ASSY, Semi-Powershift, Incl 2 - 23

1шт.

See also Transmission Components in Figures 21.103.020, 21.111.030, 21.111.040, 21.152.020, 21.152.030, 21.152.040, 21.152.050, 33.110.030, 55.020.010, 55.021.010, 55.022.040, 55.023.010, 55.024.050, 55.024.080, 55.031.050, 55.031.060

1шт.

2

87525849

REPAIR KIT

ASSY, Input Shaft, Incl 3, 20, 21

1шт.

See also Repair Kit Components in Figure 21.152.020

1шт.

3

358645A1

SEALING RING

1шт.

4

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

1шт.

5

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

6

358635A1

SPACER

1шт.

7

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

8

358632A1

PINION,35T

Reverse

1шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

10

310519A1

PLATE

1шт.

11

181158A1

CLUTCH DISC

6шт.

12

181159A1

DISC

7шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

1шт.

14

181161A1

PLATE, THRUST

1шт.

15

358637A1

SPRING

1шт.

16

358641A1

TRANSMISSION SLEEVE

1шт.

17

358644A1

PISTON

Clutch

1шт.

18

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

1шт.

19

358642A1

SEALING RING

1шт.

20

NSS

NOT SOLD SEPARAT

Input Shaft, Incl in 2

1шт.

21

139312A1

PLUG,Expansion, 6mm OD

4шт.

22

181108A1

SPLIT PIN,3mm OD x 8mm L

2шт.

23

358640A1

WASHER

1шт.
