Запчасти Case 580SN (21.134.070) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, CONTROL VALVE, 4WD (21) - TRANSMISSION

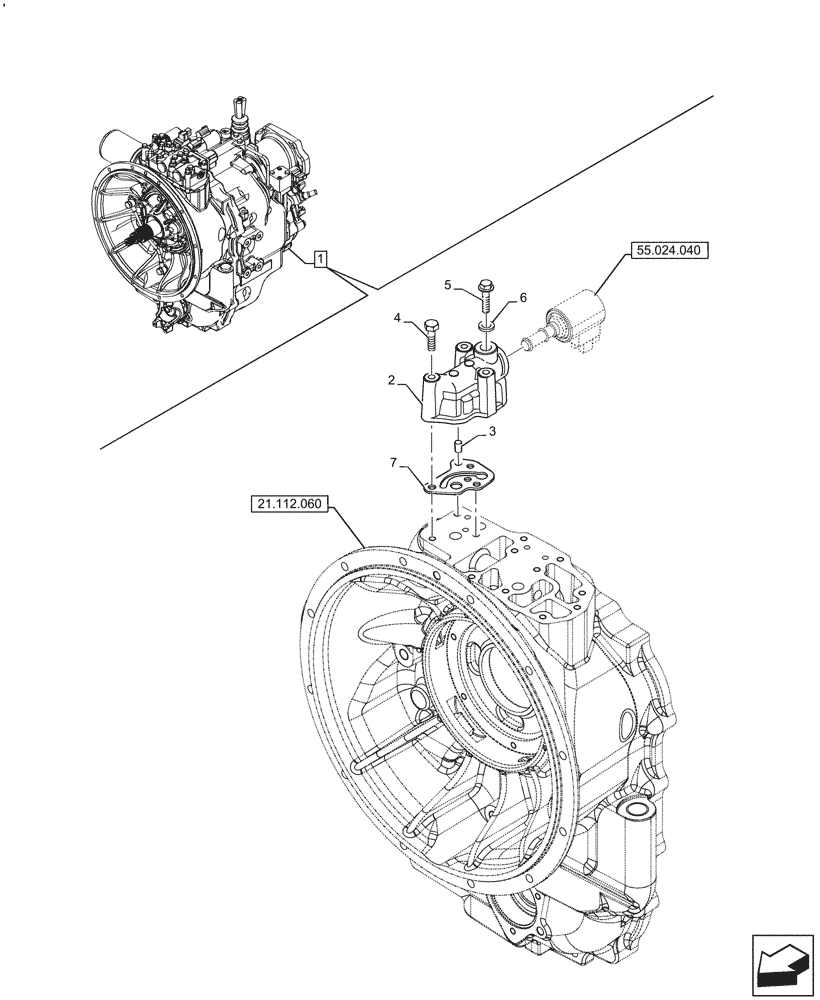

Схема запчастей Case 580SN - (21.134.070) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, CONTROL VALVE, 4WD (21) - TRANSMISSION
55.024.040
6
7
2
1
4
3
5
21.112.060

Артикул

Название

Примечание

Количество

1

87395301

TRANSMISSION

ASSY, TLB 1 Up with SAHR, Incl 2 - 7

1шт.

See also Transmission Components in Figures 21.104.040, 21.112.060, 21.112.080, 21.134.050, 21.134.060, 21.154.070, 21.154.080, 21.154.090, 21.154.100, 21.154.110, 21.154.120, 21.154.130, 33.110.020, 55.024.040, 55.031.030, 55.031.040

1шт.

2

321428A1

HOUSING

4WD Valve

1шт.

3

190431A1

VALVE

1шт.

4

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

5

934667R1

SEALING RING,M10 x 14 x 1

1шт.

6

181100A1

PLUG,1/8 CAS x 8

1шт.

7

366910A1

GASKET

1шт.

Выбрано товаров: 8
