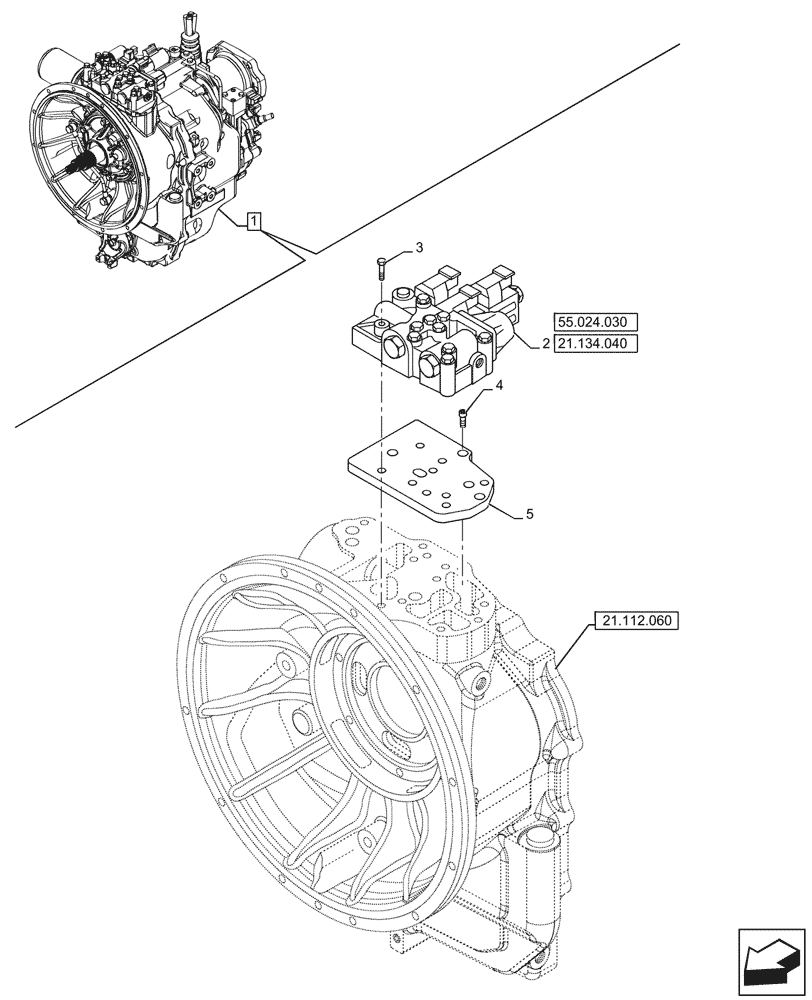

Запчасти Case 580SN (21.134.060) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, CONTROL VALVE, 4WD (21) - TRANSMISSION

1

87395301

TRANSMISSION

ASSY, TLB 1 Up with SAHR, Incl 2 - 5

1шт.

See also Transmission Components in Figures 21.104.040, 21.112.060, 21.112.080, 21.134.050, 21.134.070, 21.154.070, 21.154.080, 21.154.090, 21.154.100, 21.154.110, 21.154.120, 21.154.130, 33.110.020, 55.024.040, 55.031.030, 55.031.040

1шт.

2

87524409

CONTROL VALVE

ASSY, Transmission

1шт.

3

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

6шт.

4

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

3шт.

5

181207A1

PLATE

1шт.
