Запчасти Case 580SN (21.134.040) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, CONTROL VALVE, 2WD (21) - TRANSMISSION

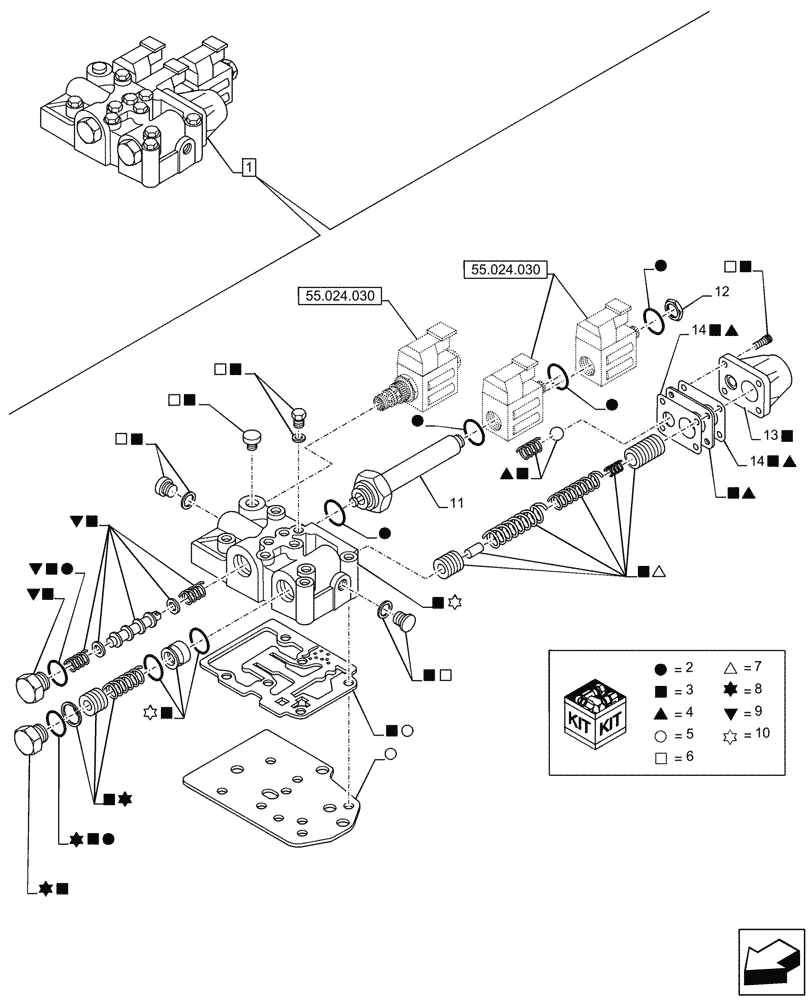

Схема запчастей Case 580SN - (21.134.040) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, CONTROL VALVE, 2WD (21) - TRANSMISSION
55.024.030
2
7
3
4
3
2
3
3
8
14
2
6
3
4
2
13
3
5
3
7
2
3
8
6
4
4
3
3
3
3
10
3
8
3
6
3
2
6
3
3
10
10
8
3
9
11
6
12
4
9
9
3
1
5
9
3
5
2
6
3
14
55.024.030

Артикул

Название

Примечание

Количество

1

87524409

CONTROL VALVE

ASSY, Transmission, Incl 2 - 14

1шт.

See also Control Valve Components in Figure 55.024.030

1шт.

2

87524436

REPAIR KIT

ASSY, Transmission Control Valve Gaskets

1шт.

3

87524441

KIT

ASSY, Body Valve, Incl 13, 14

1шт.

4

87524439

REPAIR KIT

ASSY, Plate, Incl 14

1шт.

5

87524437

REPAIR KIT

ASSY, Transmission Control Valve Gaskets

1шт.

6

87524435

REPAIR KIT

ASSY, Control Valve

1шт.

7

87524438

REPAIR KIT

ASSY, Modulation Valve

1шт.

8

87524433

REPAIR KIT

ASSY, Flow Divider Piston for Control Valve

1шт.

9

87524432

REPAIR KIT

ASSY, Forward/Reverse Spool Kit for Control Valve

1шт.

10

87524440

REPAIR KIT

ASSY, Control Valve Body

1шт.

11

190442A1

PLUNGER

1шт.

12

87530365

PLUG

1шт.

13

181251A1

COVER

Valve

1шт.

14

181256A1

GASKET

2шт.

Выбрано товаров: 15
