Запчасти Case 580SN (21.134.030) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, CONTROL VALVE, 2WD (21) - TRANSMISSION

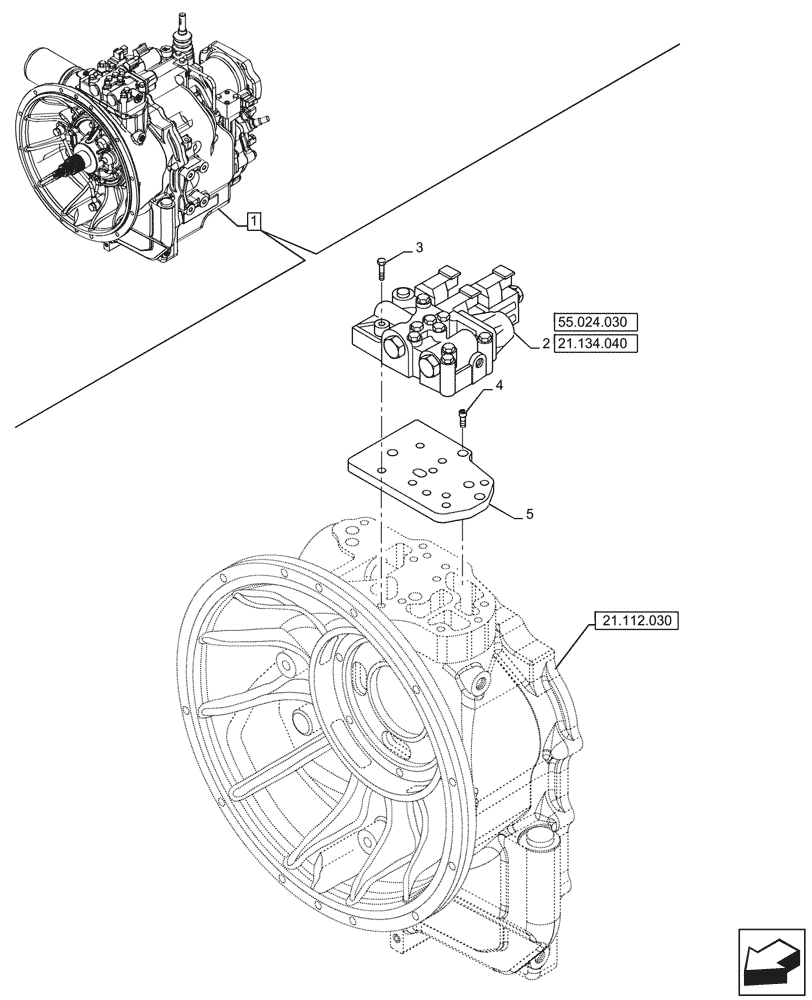

Схема запчастей Case 580SN - (21.134.030) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, CONTROL VALVE, 2WD (21) - TRANSMISSION
55.024.030
1
5
4
2
3
21.134.040
21.112.030

Артикул

Название

Примечание

Количество

1

87395300

TRANSMISSION

ASSY, TLB 1 Up with SAHR, Incl 2 - 5

1шт.

See also Transmission Components in Figures 21.104.020, 21.112.030, 21.113.010, 21.134.020, 21.134.040, 21.154.010, 21.154.020, 21.154.030, 21.154.040, 21.154.050, 21.154.060, 33.110.010, 55.024.030, 55.031.010, 55.031.020

1шт.

2

87524409

CONTROL VALVE

ASSY, Transmission

1шт.

3

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

6шт.

4

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

3шт.

5

181207A1

PLATE

1шт.

Выбрано товаров: 6
