Запчасти Case 580SN (21.112.080) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, OIL PUMP, 4WD (21) - TRANSMISSION

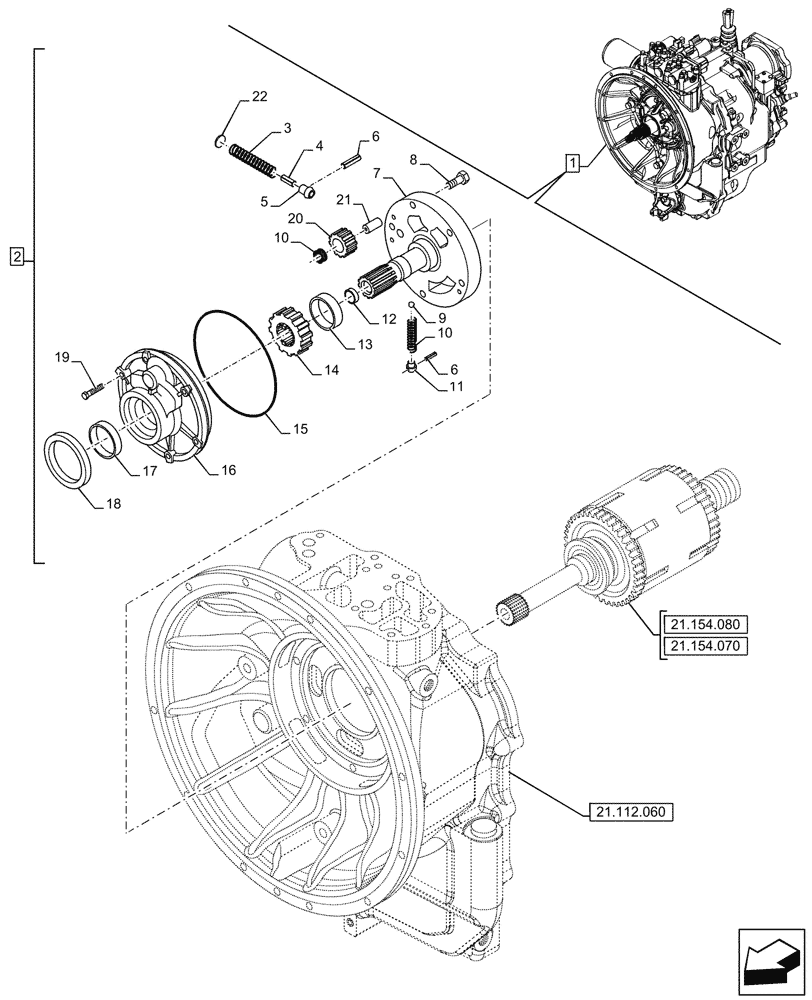

Схема запчастей Case 580SN - (21.112.080) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, OIL PUMP, 4WD (21) - TRANSMISSION
21.154.070
21
11
20
13
18
3
7
6
8
2
22
15
6
1
14
10
16
17
5
4
9
12
19
10
21.112.060
21.154.080

Артикул

Название

Примечание

Количество

1

87395301

TRANSMISSION

ASSY, TLB 1 Up with SAHR, Incl 2 - 22

1шт.

See also Transmission Components in Figures 21.104.040, 21.112.060, 21.134.050, 21.134.060, 21.134.070, 21.154.070, 21.154.080, 21.154.090, 21.154.100, 21.154.110, 21.154.120, 21.154.130, 33.110.020, 55.024.040, 55.031.030, 55.031.040

1шт.

2

87429970

PUMP

ASSY, Oil, Incl 3 - 22

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Cotter Pin, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

6

NSS

NOT SOLD SEPARAT

Cotter Pin, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Shaft, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

Bolt, Incl in 2

1шт.

9

NSS

NOT SOLD SEPARAT

Ball, Incl in 2

1шт.

10

NSS

NOT SOLD SEPARAT

Spring, Incl in 2

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Incl in 2

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Incl in 2

1шт.

14

NSS

NOT SOLD SEPARAT

Gear, Incl in 2

1шт.

15

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

17

NSS

NOT SOLD SEPARAT

Ring, Incl in 2

1шт.

18

87429971

OIL SEAL

1шт.

19

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

6шт.

20

NSS

NOT SOLD SEPARAT

Gear, Incl in 2

1шт.

21

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

1шт.

22

NSS

NOT SOLD SEPARAT

Washer, Incl in 2

1шт.

Выбрано товаров: 23
