Запчасти Case 580SN (21.112.030) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, HOUSING, 2WD (21) - TRANSMISSION

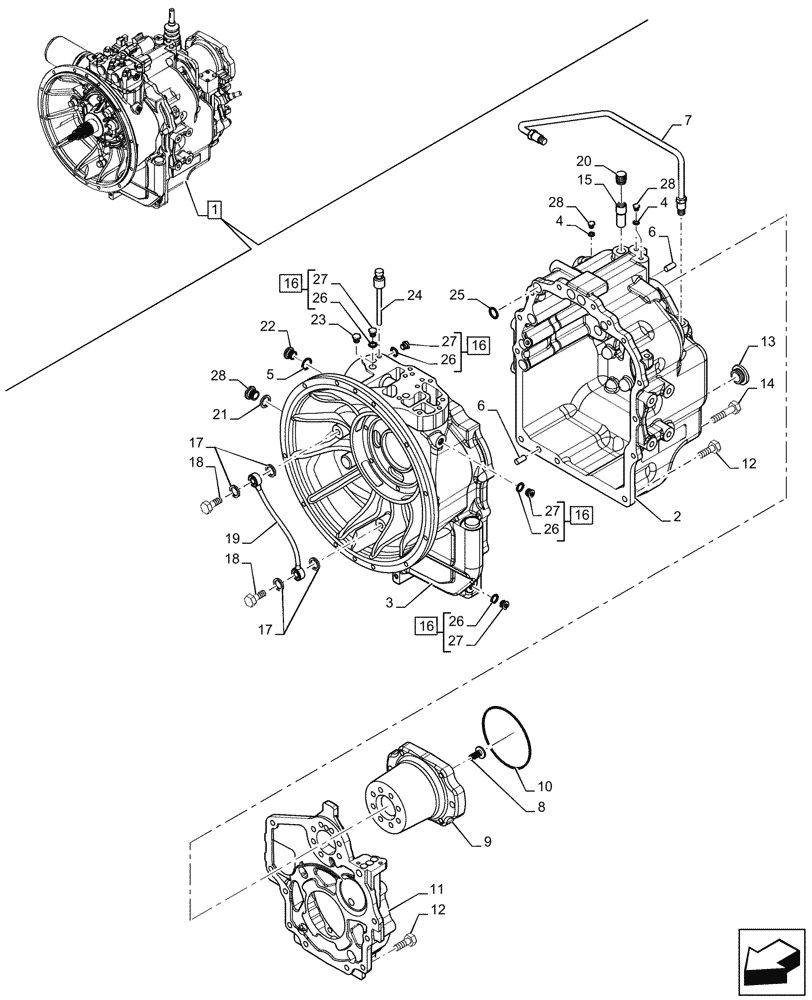

Схема запчастей Case 580SN - (21.112.030) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, HOUSING, 2WD (21) - TRANSMISSION
28
9
1
27
15
3
27
11
12
17
13
27
4
8
12
17
2
19
25
18
16
7
6
14
22
26
27
24
28
21
5
16
26
26
26
16
6
10
18
23
28
4
16
20

Артикул

Название

Примечание

Количество

1

87395300

TRANSMISSION

ASSY, TLB 1 Up with SAHR, Incl 2 - 28

1шт.

See also Transmission Components in Figures 21.104.020, 21.112.070, 21.134.020, 21.134.030, 21.154.010, 21.154.020, 21.154.030, 21.154.040, 21.154.050, 21.154.060, 33.110.010, 55.031.010, 55.031.020

1шт.

2

84318196

HOUSING

Front

1шт.

3

87701255

TRANSMISSION HOUSING

Rear

1шт.

4

934667R1

SEALING RING,M10 x 14 x 1

3шт.

5

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

6

K260177

PIN

3шт.

7

87701270

PIPE

Transmission Oil

1шт.

8

87701258

BOLT,M10 x 1.5 x 45mm L

7шт.

9

87701269

FLANGE

Transmission, PTO

1шт.

10

175156

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

11

87701257

COVER

Housing

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

17шт.

13

100557A1

PLUG, DRAIN,M30 x 2

1шт.

14

814-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8

2шт.

15

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

Oil Breather

1шт.

16

9625178

PLUG,9/16" - 18 ORB

ASSY, Incl 26, 27

4шт.

17

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

4шт.

18

181179A1

BANJO BOLT

2шт.

19

181232A1

TUBE

1шт.

20

1530028C1

BREATHER

1шт.

21

87429985

SEALING WASHER,10mm ID x 18mm OD x 1.5mm Thk

1шт.

22

181101A1

PLUG,M14 x 1.5

1шт.

23

87701260

PLUG,M16 x 1.5

1шт.

24

87701779

RIVET,7mm OD

1шт.

25

181141A1

O-RING,17.12mm ID x 2.62mm Width

4шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

27

NSS

NOT SOLD SEPARAT

Plug, Incl in 16

4шт.

28

181100A1

PLUG,1/8 CAS x 8

4шт.

Выбрано товаров: 29
