Запчасти Case 580SN (21.111.040) - VAR - 423060 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, HOUSING, 2WD (21) - TRANSMISSION

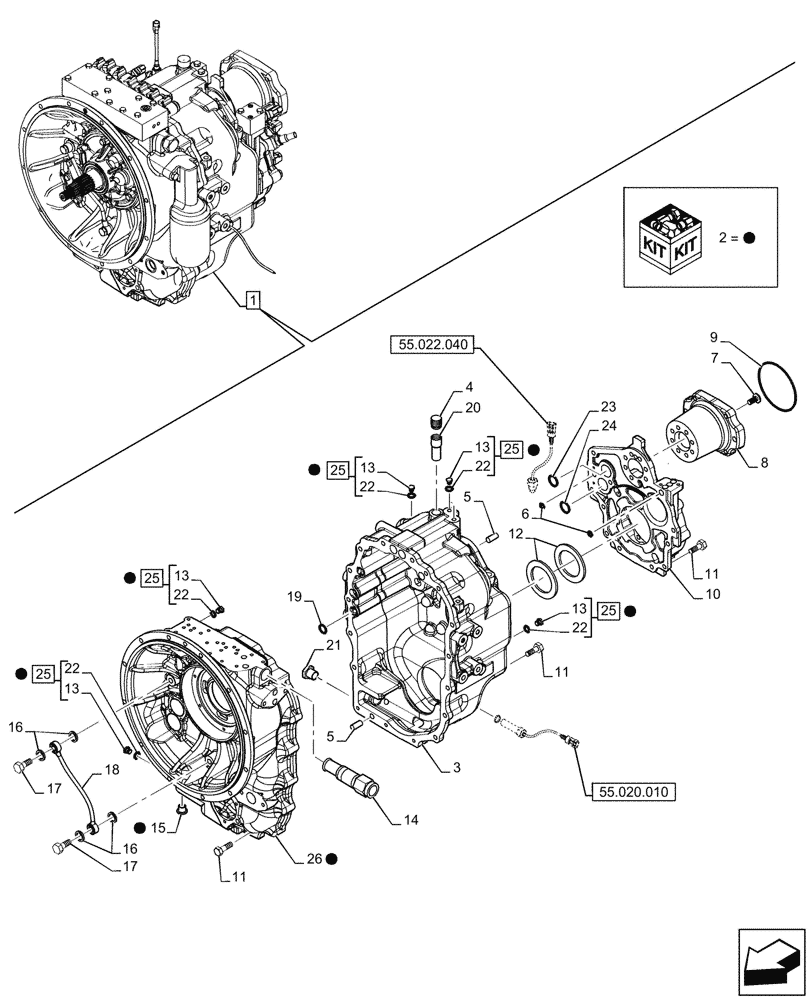

Схема запчастей Case 580SN - (21.111.040) - VAR - 423060 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, HOUSING, 2WD (21) - TRANSMISSION
55.020.010
5
23
25
5
13
11
22
7
2
2
9
22
13
21
22
2
15
25
19
3
25
26
16
22
24
22
6
13
13
13
25
17
10
17
2
12
8
14
11
20
1
18
2
4
2
16
2
2
11
55.022.040
25

Артикул

Название

Примечание

Количество

1

84327511

TRANSMISSION

ASSY, Semi-Powershift, Incl 2 - 26

1шт.

See also Transmission Components in Figures 21.103.020, 21.111.030, 21.152.010, 21.152.020, 21.152.030, 21.152.040, 21.152.050, 33.110.030, 55.020.010, 55.021.010, 55.022.040, 55.023.010, 55.024.050, 55.024.080, 55.031.050, 55.031.060

1шт.

2

84367070

HOUSING

ASSY, Front, Incl 26

1шт.

3

84336854

HOUSING

Rear

1шт.

4

1530028C1

BREATHER

1шт.

5

K260177

PIN

3шт.

6

5194294

RUBBER RING

3шт.

7

87701258

BOLT,M10 x 1.5 x 45mm L

10шт.

8

87701269

FLANGE

Transmission, PTO

1шт.

9

175156

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

10

84336855

COVER

Rear

1шт.

11

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

20шт.

12

84336858

SHIM,0.1mm Thk

1шт.

12

84336860

SHIM,0.3mm Thk

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 25

7шт.

14

84336881

VALVE, PRESSURE CONT

1шт.

15

239606A1

PLUG

1шт.

16

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

4шт.

17

181179A1

BANJO BOLT

2шт.

18

181232A1

TUBE

1шт.

19

181141A1

O-RING,17.12mm ID x 2.62mm Width

6шт.

20

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

Oil Breather

1шт.

21

100557A1

PLUG, DRAIN,M30 x 2

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

23

272219

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1шт.

24

9820460

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

25

9625178

PLUG,9/16" - 18 ORB

ASSY, Incl 13, 22

7шт.

26

NSS

NOT SOLD SEPARAT

Front Housing, Incl in 2

1шт.

Выбрано товаров: 28
