Запчасти Case 580SN (21.111.020) - VAR - 423060 - TRANSMISSION, SEMI-POWERSHIFT, DIPSTICK, 2WD (21) - TRANSMISSION

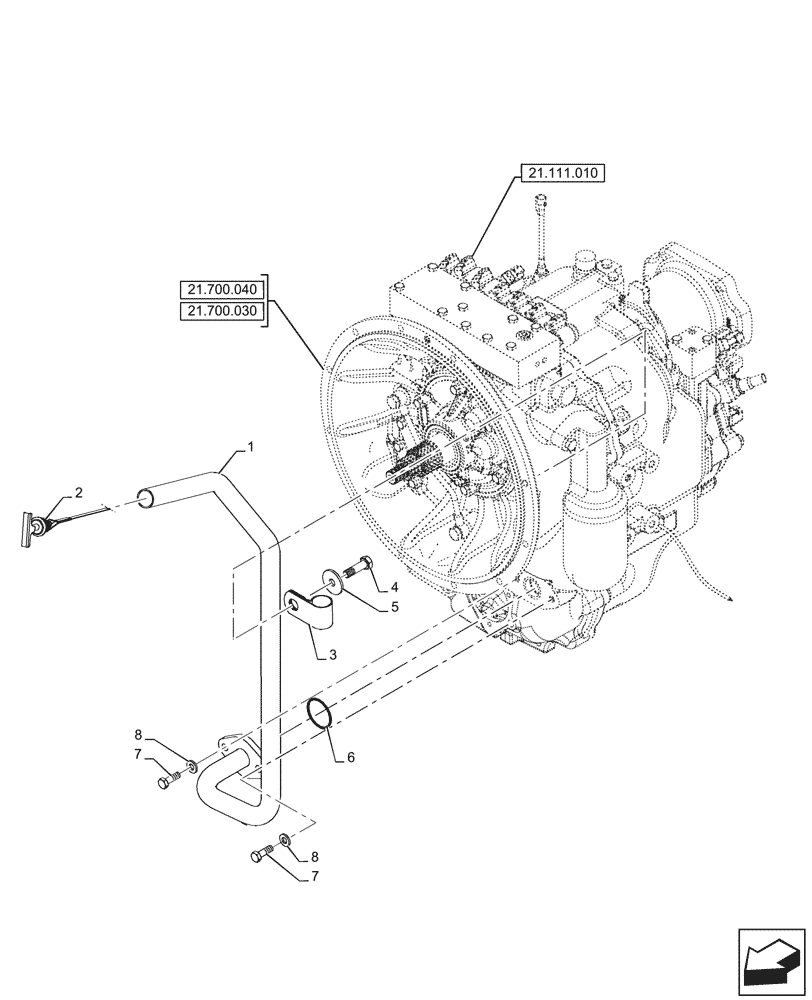

Схема запчастей Case 580SN - (21.111.020) - VAR - 423060 - TRANSMISSION, SEMI-POWERSHIFT, DIPSTICK, 2WD (21) - TRANSMISSION
21.111.010
6
8
8
1
5
7
4
2
7
3
21.700.040
21.700.030

Артикул

Название

Примечание

Количество

1

47592695

TUBE

Dipstick Semi-Powershift Transmission

1шт.

2

87601345

DIPSTICK,824mm L

Transmission Oil

1шт.

3

D35908

CLAMP,1" Clamping pipe

1шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

6

272218

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

Выбрано товаров: 8
