Запчасти Case 580SN (21.105.030) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, OIL LINE, INTERNAL, 4WD (21) - TRANSMISSION

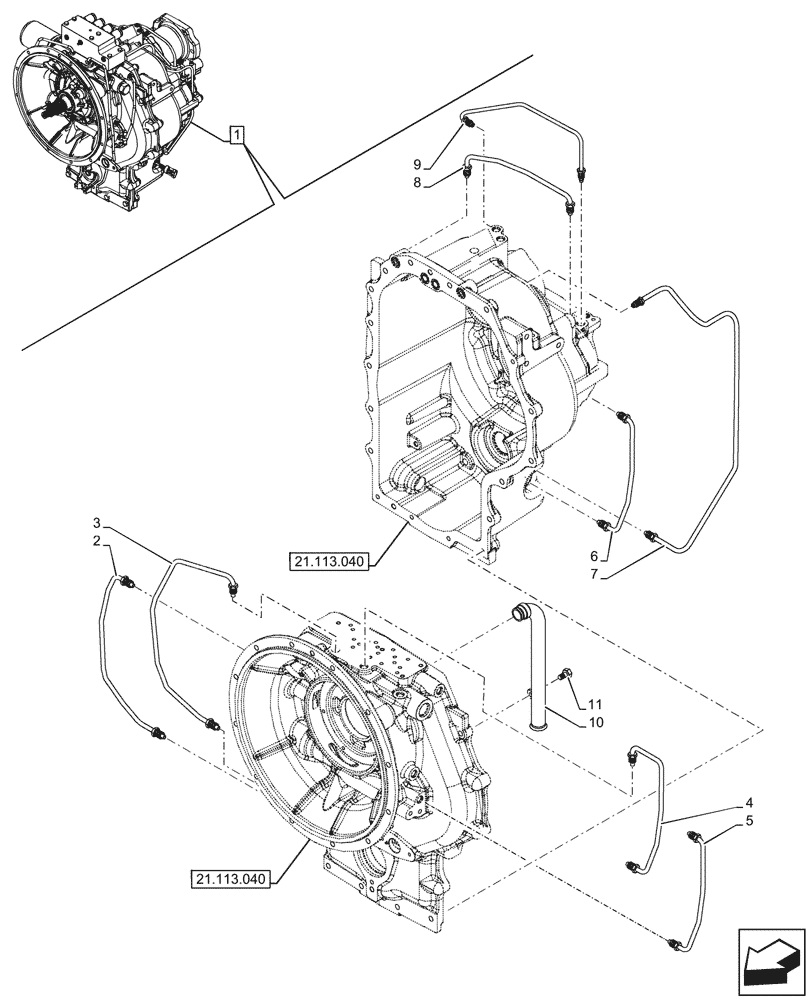

Схема запчастей Case 580SN - (21.105.030) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, OIL LINE, INTERNAL, 4WD (21) - TRANSMISSION
21.113.040
8
3
10
2
11
4
7
1
5
9
6
21.113.040

Артикул

Название

Примечание

Количество

1

87567534

TRANSMISSION

ASSY, TLB 2, Powershift, Incl 2 - 11

1шт.

See also Transmission Components in Figures 21.105.020, 21.113.030, 21.113.040, 21.155.010, 21.155.020, 21.155.030, 21.155.040, 21.155.050, 21.155.060, 33.110.050, 55.020.030, 55.022.060, 55.024.070, 55.024.110, 55.031.090, 55.031.100

1шт.

2

87705434

TUBE

3rd Speed

1шт.

3

87705432

TUBE

1st Speed

1шт.

4

87705444

TUBE

4th Speed

1шт.

5

87705441

TUBE

2nd Speed

1шт.

6

87705452

TUBE

Lubrication

1шт.

7

87705448

TUBE

Lubrication

1шт.

8

87705455

TUBE

Lubrication

1шт.

9

87705446

TUBE

Lubrication

1шт.

10

87705438

PIPE

Powershift Transmission, Sunction

1шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 12
