Запчасти Case 580SN (21.105.020) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, OIL FILTER, 4WD (21) - TRANSMISSION

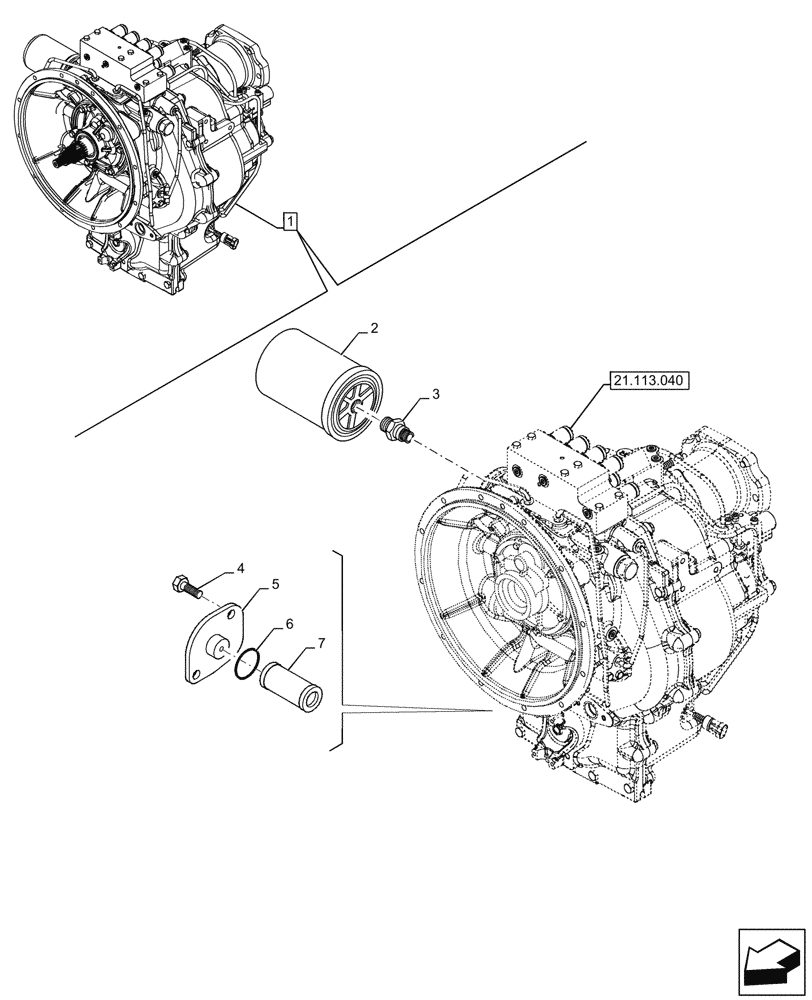

Схема запчастей Case 580SN - (21.105.020) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, OIL FILTER, 4WD (21) - TRANSMISSION
21.113.040
7
1
2
5
6
3
4

Артикул

Название

Примечание

Количество

1

87567534

TRANSMISSION

ASSY, TLB 2, Powershift, Incl 2 - 7

1шт.

See also Transmission Components in Figures 21.105.030, 21.113.030, 21.113.040, 21.155.010, 21.155.020, 21.155.030, 21.155.040, 21.155.050, 21.155.060, 33.110.050, 55.020.030, 55.022.060, 55.024.070, 55.024.110, 55.031.090, 55.031.100

1шт.

2

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Hydraulic Oil, Transmission

1шт.

3

181202A1

FITTING

1шт.

4

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

5

181219A1

COVER

1шт.

6

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

7

278534A1

FILTER SCREEN

Transmission Oil / Suction

1шт.

Выбрано товаров: 8
