Запчасти Case 580SN (21.104.040) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, OIL FILTER, 4WD (21) - TRANSMISSION

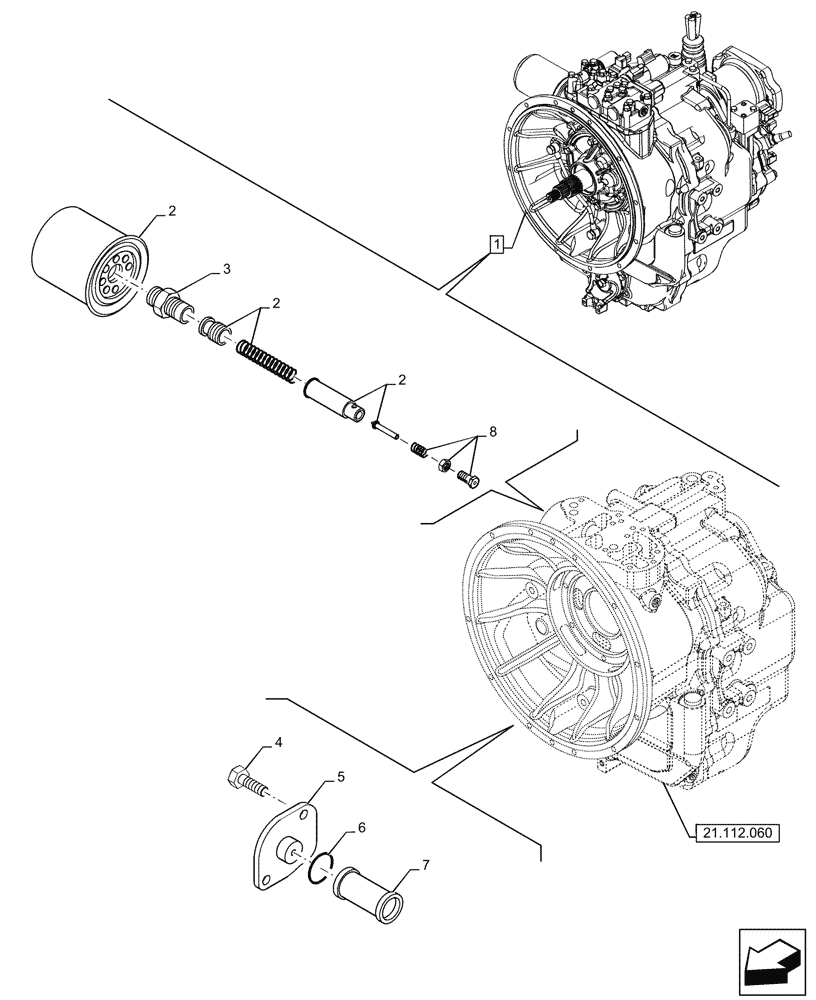

Схема запчастей Case 580SN - (21.104.040) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, OIL FILTER, 4WD (21) - TRANSMISSION
21.112.060
2
1
6
8
5
2
4
3
2
7

Артикул

Название

Примечание

Количество

1

87395301

TRANSMISSION

ASSY, TLB 1 Up with SAHR, Incl 2 - 8

1шт.

See also Transmission Components in Figures 21.112.060, 21.112.080, 21.134.050, 21.134.060, 21.134.070, 21.154.070, 21.154.080, 21.154.090, 21.154.100, 21.154.110, 21.154.120, 21.154.130, 33.110.020, 55.024.040, 55.031.030, 55.031.040

1шт.

2

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Hydraulic Oil, Transmission

1шт.

3

181202A1

FITTING

1шт.

4

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

5

84301332

COVER

1шт.

6

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

7

278534A1

FILTER SCREEN

Transmission Oil / Suction

1шт.

8

84127891

KIT

Hydraulic Valve, Transmission

1шт.

Выбрано товаров: 9
