Запчасти Case 580SN (21.104.030) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, OIL COOLER, LINE, 2WD (21) - TRANSMISSION

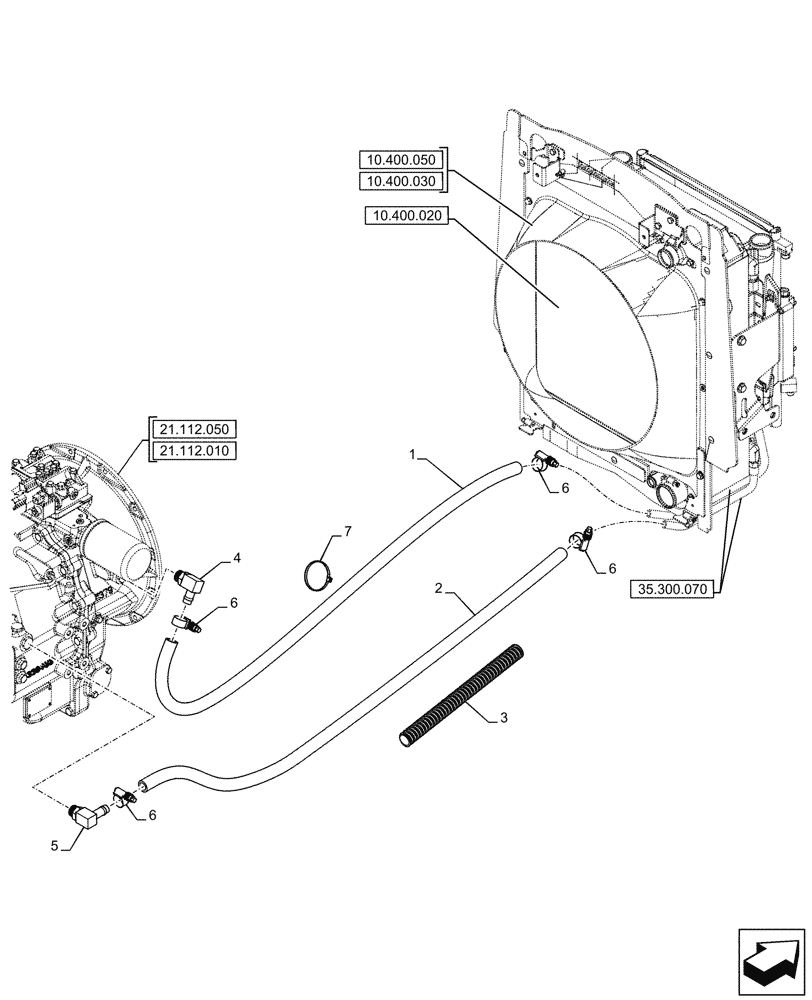

Схема запчастей Case 580SN - (21.104.030) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, OIL COOLER, LINE, 2WD (21) - TRANSMISSION
35.300.070
7
6
2
4
6
6
1
5
6
3
10.400.050
10.400.030
21.112.050
21.112.010
10.400.020

Артикул

Название

Примечание

Количество

1

47595478

HOSE,15.9mm ID x 1161mm L

Transmission Cooler Fill

1шт.

2

47595479

TUBE,15.88mm ID x 1260mm

Lower Cooler, 1260mm

1шт.

3

D134399

LOOM

400mm

1шт.

4

47592191

FITTING,7/8" - 14 OD, 5/8" OD

1шт.

5

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

1шт.

6

328186A1

HOSE CLAMP,400mm L

4шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

Выбрано товаров: 7
