Запчасти Case 580SN (21.103.020) - VAR - 423060 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENT, OIL FILTER, 2WD (21) - TRANSMISSION

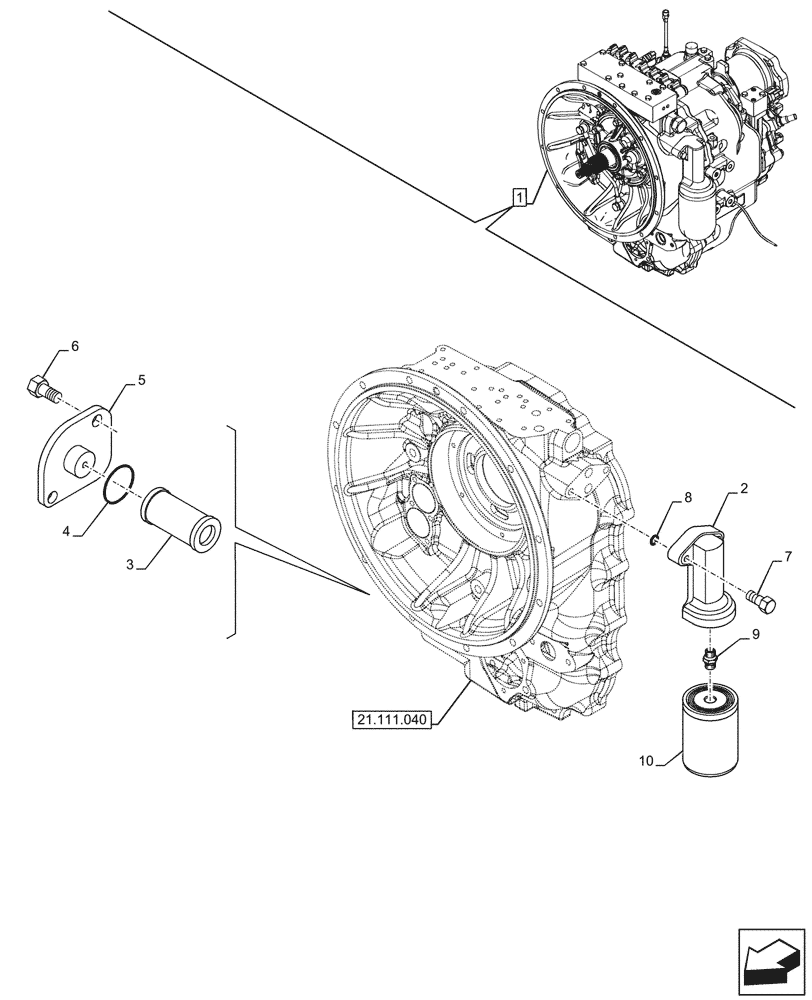

Схема запчастей Case 580SN - (21.103.020) - VAR - 423060 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENT, OIL FILTER, 2WD (21) - TRANSMISSION
21.111.040
2
8
10
4
6
3
1
5
9
7

Артикул

Название

Примечание

Количество

1

84327511

TRANSMISSION

ASSY, Semi-Powershift, Incl 2 - 10

1шт.

See also Transmission Components in Figures 21.111.030, 21.111.040, 21.152.010, 21.152.020, 21.152.030, 21.152.040, 21.152.050, 33.110.030, 55.020.010, 55.021.010, 55.022.040, 55.023.010, 55.024.050, 55.024.080, 55.031.050, 55.031.060

1шт.

2

84336851

FILTER HEAD

Support

1шт.

3

278534A1

FILTER SCREEN

Transmission Oil / Suction

1шт.

4

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

5

84301332

COVER

Filter Screen

1шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

7

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

8

181141A1

O-RING,17.12mm ID x 2.62mm Width

2шт.

9

181202A1

FITTING

1шт.

10

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Hydraulic Oil, Transmission

1шт.

Выбрано товаров: 11
