Запчасти Case 580SN (10.400.050) - VAR - 423000, 442082, 747853, 747854, 747855 - RADIATOR, SUPPORT, SHROUD (10) - ENGINE

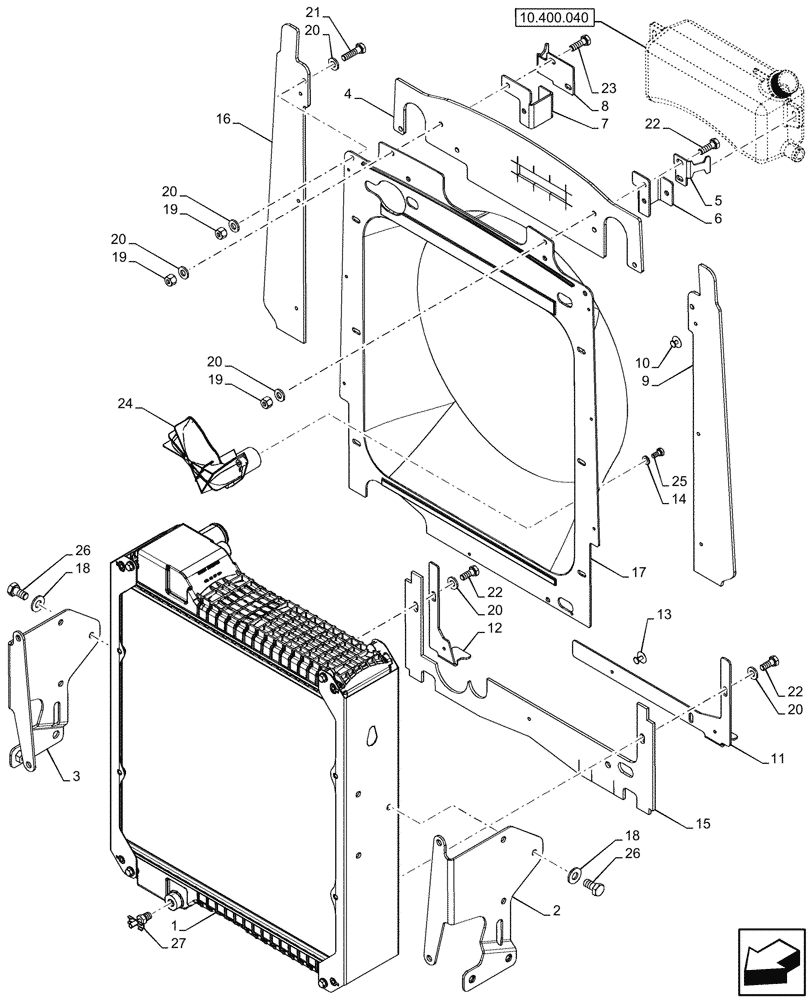

Схема запчастей Case 580SN - (10.400.050) - VAR - 423000, 442082, 747853, 747854, 747855 - RADIATOR, SUPPORT, SHROUD (10) - ENGINE
10.400.040
14
20
13
8
19
22
3
21
26
22
16
6
23
4
17
20
2
20
11
27
20
20
26
5
7
12
25
10
19
1
18
22
20
18
19
15
24
9

Артикул

Название

Примечание

Количество

1

84497735

RADIATOR

5 ROW 10 FPI

1шт.

2

87602287

BRACKET

LH, Radiator Support

1шт.

3

87602286

BRACKET

RH, Radiator Support

1шт.

4

84485920

SEAL,616mm L

Top Radiator

1шт.

5

84387500

BRACKET

LH, CAC Tube Support

1шт.

6

84387349

BRACKET

LH, Bottle Retaining

1шт.

7

84387348

BRACKET

RH, Bottle Retaining

1шт.

8

84387496

BRACKET

RH, CAC Tube Support

1шт.

9

84403324

RUBBER SEAL,664mm L

1шт.

10

87301355

RIVET,Pop, 3/16" x .575"

6шт.

11

87446082

RETAINING PLATE,390mm x 195mm x 43mm L

LH, Lower Shroud

1шт.

12

87446081

RETAINING PLATE,195mm x 62mm x 43mm L

RH, Lower Shroud

1шт.

13

87301356

RIVET,Pop, 3/16" x .700"

1шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

84540367

SEAL,614mm L

Radiator, Lower

1шт.

16

47565514

SEAL,664mm L

Radiator Side

1шт.

17

47615718

SHROUD

1шт.

18

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

20

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

15шт.

21

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

4шт.

22

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

23

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

24

84185540

DUST CAP

1шт.

25

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

26

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

27

47819617

DRAINCOCK/TAP SUPPLY

1шт.

Выбрано товаров: 27
