(90.114.030) - VAR - 442082 - CANOPY, NARROW, FRAME

Запчасти Case 580SN (90.114.030) - VAR - 442082 - CANOPY, NARROW, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

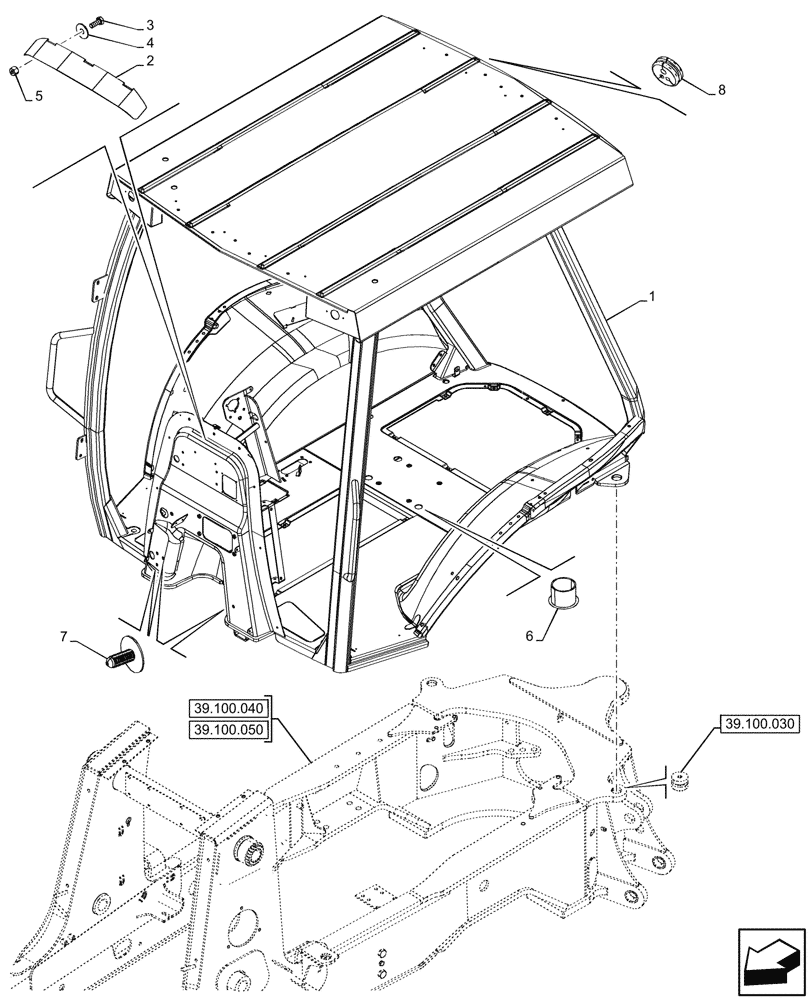

Схема запчастей Case 580SN - (90.114.030) - VAR - 442082 - CANOPY, NARROW, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.100.050
5
6
8
3
1
2
4
7
39.100.030
39.100.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47573521

FRAME

Grey, ASSY

1шт.

2

395478A3

BRACKET

Firewall Molding

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

4

495-81001

WASHER,5/16"

3шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

6

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

7

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

6шт.

8

47478057

GROMMET,35mm OD, 5mm ID, 7mm ID

1шт.
