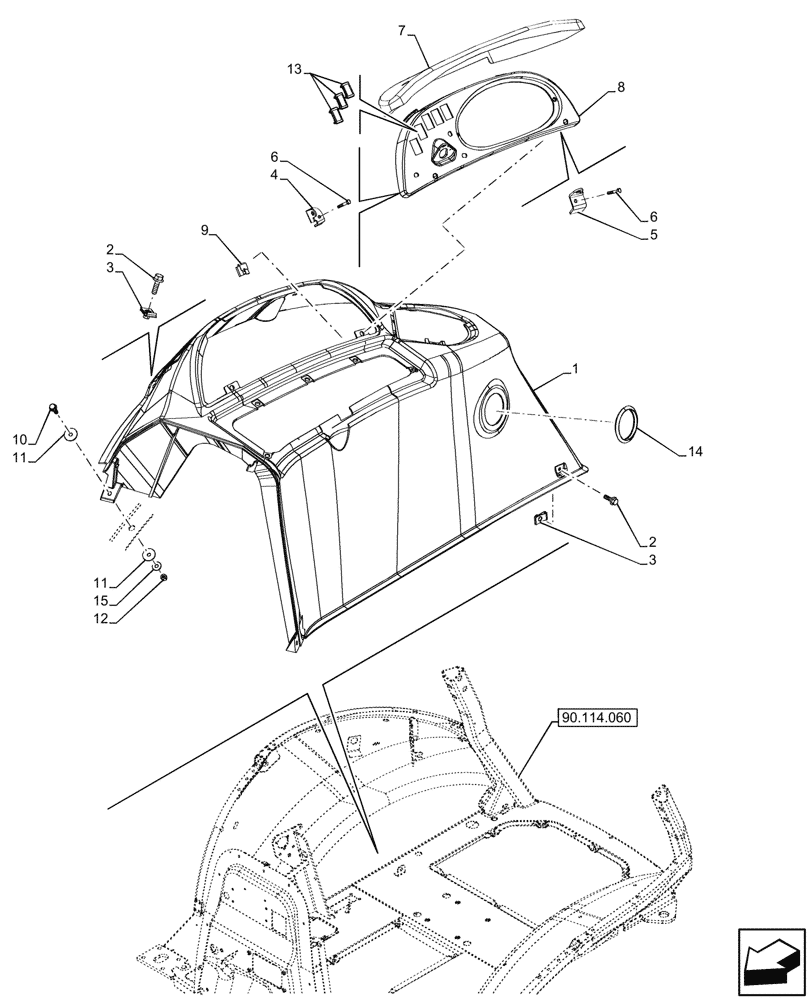

Запчасти Case 580SN (90.110.130) - VAR - 423001 - CANOPY, RIGHT, PANEL, CONSOLE, MALAYSIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47954919

TRIM PANEL

RH Console

1шт.

2

87310098

BOLT,M6 x 20 Full SST BLO

4шт.

3

833-40406

NUT,M6, U

4шт.

4

386368A2

BRACKET

LH

1шт.

5

386369A2

BRACKET

RH

1шт.

6

87310128

SCREW,Pan Cross Recess Phillips, #10 - 24 x 57.20mm, Stainless

2шт.

7

47954926

COVER

Vandal Kit

1шт.

8

391818A2

BEZEL

ASSY, Instrument Cluster

1шт.

9

86625077

SPRING NUT,J, Ret, #10-24

2шт.

10

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

11

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

12

832-10406

NUT,M6 x 1, Cl 8

1шт.

13

126844A1

PLUG,1.427” x .62” , Plastic

Switch Cover

3шт.

14

D93716

PLUG,73.mm ID x 88.9mm OD

1шт.

15

426334A1

SPECIAL WASHER,6.96mm ID x 50mm OD x 1.5mm Thk, Cl 5A

1шт.
