(90.110.120) - VAR - 423001 - CANOPY, LEFT, PANEL, MALAYSIAN

Запчасти Case 580SN (90.110.120) - VAR - 423001 - CANOPY, LEFT, PANEL, MALAYSIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS

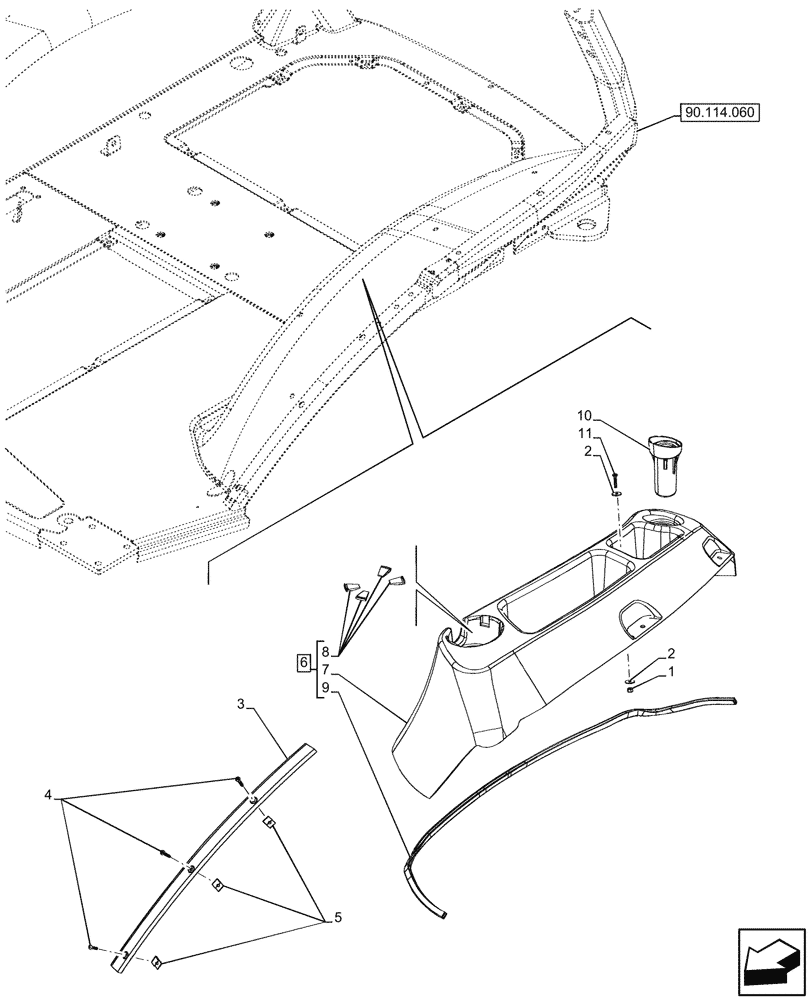

Схема запчастей Case 580SN - (90.110.120) - VAR - 423001 - CANOPY, LEFT, PANEL, MALAYSIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.114.060
6
7
11
1
3
10
2
8
9
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

231-14109

LOCK NUT,#10-24, GB

2шт.

2

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

4шт.

3

397025A2

TRIM

LH Fender

1шт.

4

87534992

SELF-TAP SCREW,Pan Head, M10 x 28mm

2шт.

5

131-869

SPRING NUT,Ret, J, #10-24

3шт.

6

86992243

TRAY

ASSY, Storage with Cup Holder, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Tray, Incl in 6

1шт.

8

86992284

BUMPER,40-50 Durometer

4шт.

9

400077A1

PROTECTION STRIP,1300mm

1шт.

10

378742A3

INSERT

1шт.

11

87310127

SCREW,Pan HD, #10 - 24 x 1", SST

2шт.
